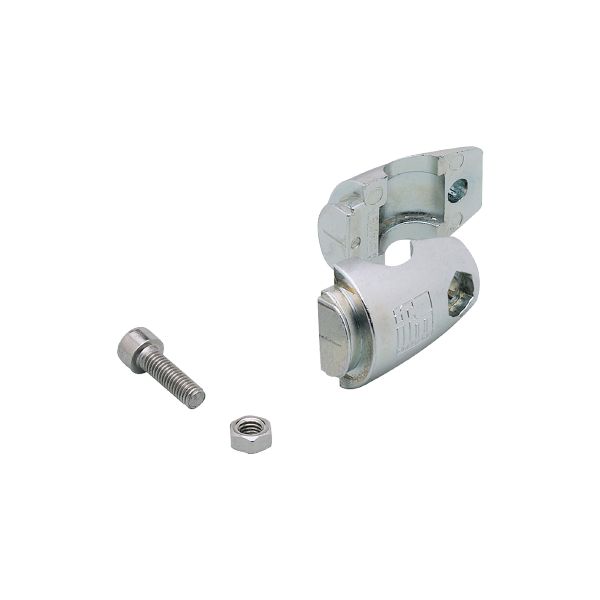

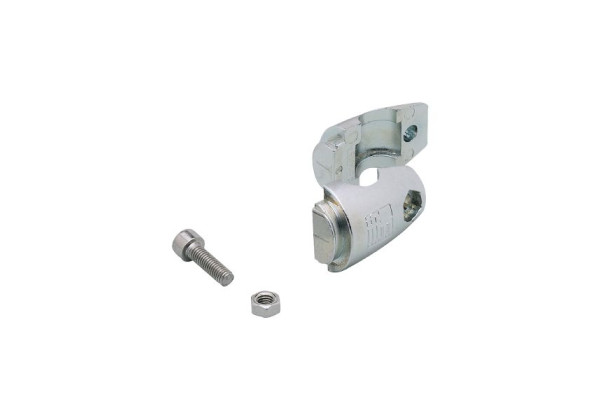

E20795 Mounting set for position sensors CLAMP M12 ROD MOUNTING
Brand: IFM Electronic
Code: E20795
- For the precise alignment of laser sensors
- Easy, quick and inexpensive fixing
- Robust design for use in harsh industrial environments
- For free-standing mounting
- Each sensor position possible due to free movement in all directions
Mechanical data
| Weight [g] | 72.5 |
|---|---|
| Type of mounting | Mounting rod; (Ø 14 mm) |
| Dimensions [mm] | M12 |
| Thread designation | M12 |
| Materials | Clamp: diecast zinc |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20795-00 — 06.03.2003 —
