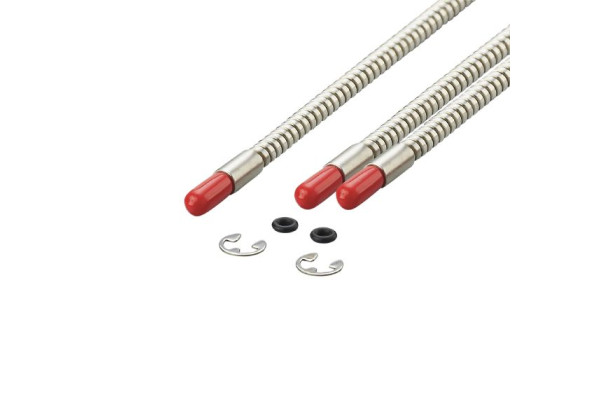

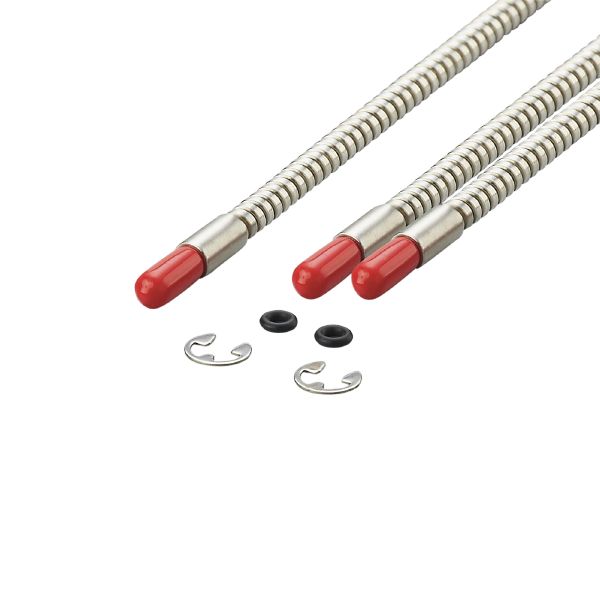

E20841 Fibre optic diffuse reflection sensor FT-50-V-V-E4,7
Brand: IFM Electronic
Code: E20841
- For applications in high-temperature areas
- Stainless steel sheathing for use up to 315 °C
- Installation in places where access is difficult
- Long range
- Small bending radius
Application
| Function principle | Diffuse reflection sensor |
|---|
Detection zone
| Range with fibre optic amplifier type | OBF; ODF; OMF |
|---|
| Range fibre optics [mm] | 150 |
|---|
| Range fibre optics [mm] | 1 |
|---|
| Range fibre optics [mm] | 175 |
|---|
Operating conditions
| Ambient temperature [°C] | -58...315 |
|---|
Mechanical data
| Weight [g] | 112.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head diameter [mm] | 4.7 |
| Total length [mm] | 900 |
| Fibre arrangement | |
| Fibre material | glass |
| Fibre head material | stainless steel (1.4305 / 303) |
| Fibre sheath material | stainless steel (1.4305 / 303) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20841-00 — 04.06.2003 —
