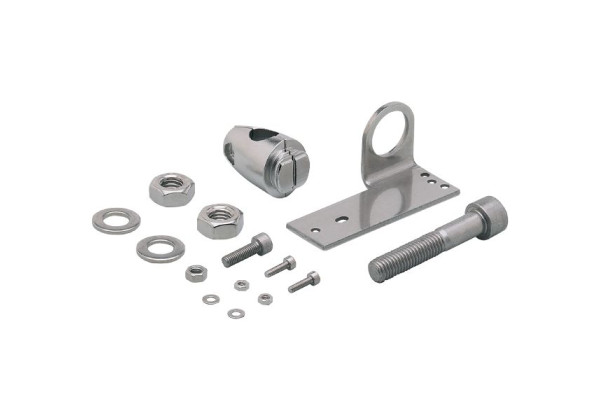

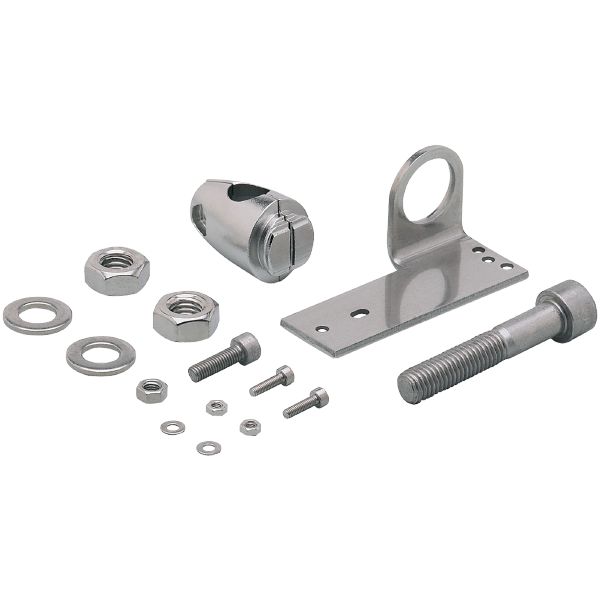

E20918 Mounting set for reflectors SYSTEM COMPONENT REFL BOLT
Brand: IFM Electronic
Code: E20918
- Complete mounting set for clamp mounting
- Easy, quick and inexpensive fixing
- Robust design for use in harsh industrial environments
- For free-standing mounting
- Each reflector position possible due to free movement in all directions
Application
| Design | clamp mounting, for reflector, 72,5 x 19 mm |
|---|
Mechanical data
| Weight [g] | 202.5 |
|---|---|
| Type of mounting | free-standing; (M10) |
| Materials | fixture: stainless steel (1.4571/316Ti ); Clamp: diecast zinc |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20918-00 — 06.03.2003 —
