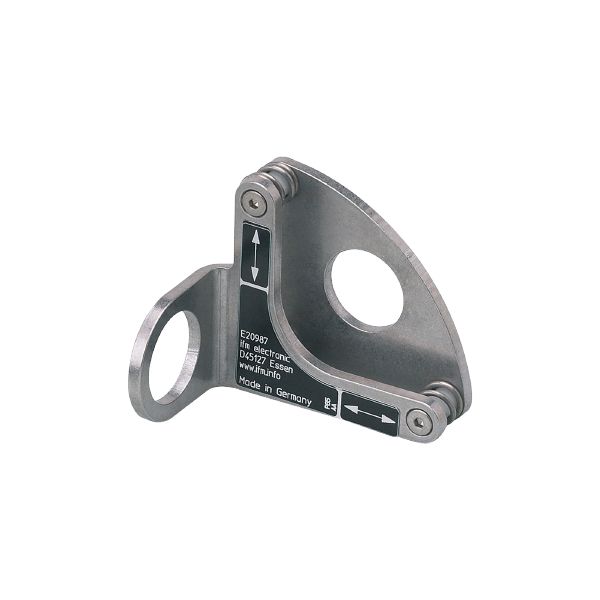

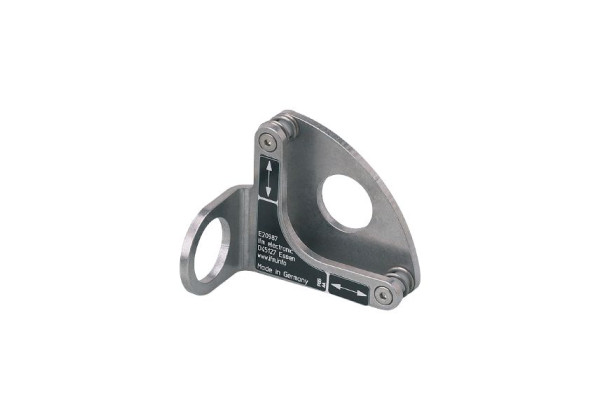

E20987 Fixture for mounting and fine adjustment of laser sensors MOUNTING SET OG/LASER
Brand: IFM Electronic
Code: E20987
- User-friendly alignment of the laser beam to a laser receiver or prismatic reflector
- High vibration resistance
- Easy, quick and inexpensive fixing
- Robust design for use in harsh industrial environments
- For mounting to a clamp
Application
| Design | clamp mounting |
|---|
Mechanical data
| Weight [g] | 234.5 |
|---|---|
| Type of mounting | Mounting rod; (Ø 12 mm) |
| Materials | fixture: stainless steel (1.4571/316Ti ); Clamp: diecast zinc |
| Alignment range | fine adjustment in 2 axes ± 3° |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20987-00 — 08.09.2008 —
