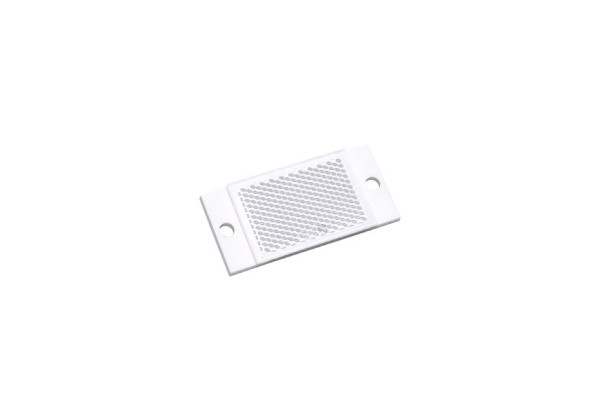

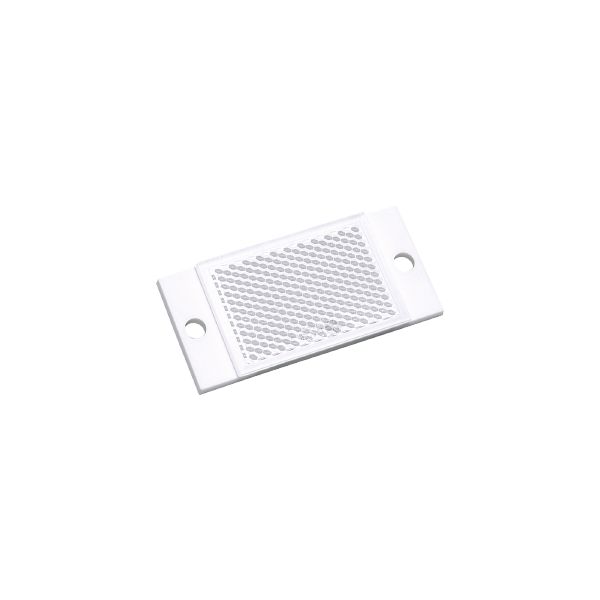

E20994 - efector200-REFLECTOR TS-30X20
Brand: IFM Electronic
Code: E20994
- For the reliable operation of laser retro-reflective sensors
- Easy mounting using only two screws
- Suitable for red light and infrared light
Application
| Design | rectangular, for retro-reflective laser sensors |
|---|
Operating conditions
| Ambient temperature [°C] | -10...60 |
|---|
Mechanical data
| Weight [g] | 4 |
|---|---|
| Dimensions [mm] | 20 x 43 x 3.5 |
| Reflector surface [mm] | 27 x 17 |
| Materials | front panel: PMMA; base: ABS |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20994-01 — 16.08.2010 —
