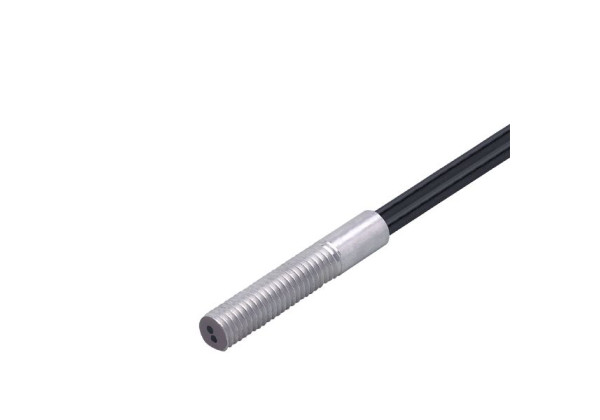

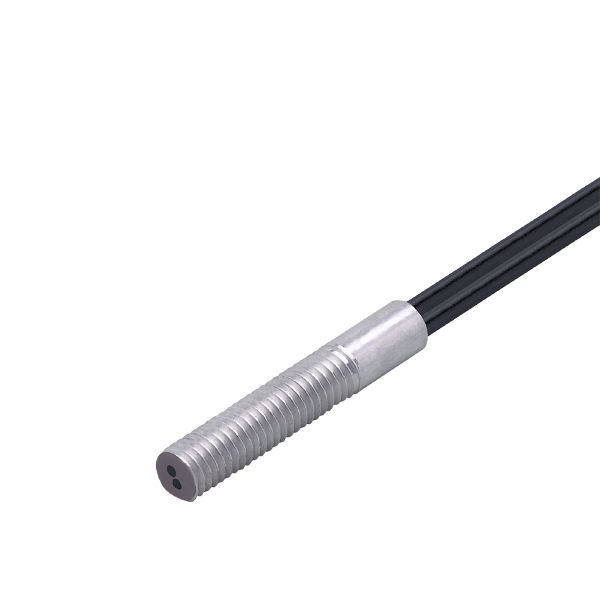

E21105 - efector200-FT-11-EPA-M6/F613X0,06/2M
Brand: IFM Electronic
Code: E21105
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- Long range
- For cutting to size
- High-flex version for extremely small bending radii
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | Small bending radius |
Detection zone
| Range with fibre optic amplifier type | OB50; OBF; OCF; OO50 |
|---|
| Range fibre optics [mm] | 70 |
|---|
| Range fibre optics [mm] | 104 |
|---|
| Range fibre optics [mm] | 620 |
|---|
| Range fibre optics [mm] | 180 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...60 |
|---|
Mechanical data
| Weight [g] | 49.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M6 |
| Sensing head length [mm] | 35 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 3 |
| Fibre arrangement | |
| Core diameter [mm] | 1.2 |
| Fibre diameter [mm] | 2x 613 x 0.06 |
| External diameter [mm] | 2.2 |
| Fibre material | PMMA |
| Fibre head material | aluminium |
| Fibre sheath material | PE |
Accessories
| Items supplied |
| ||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21105-00 — 18.08.2022 —
