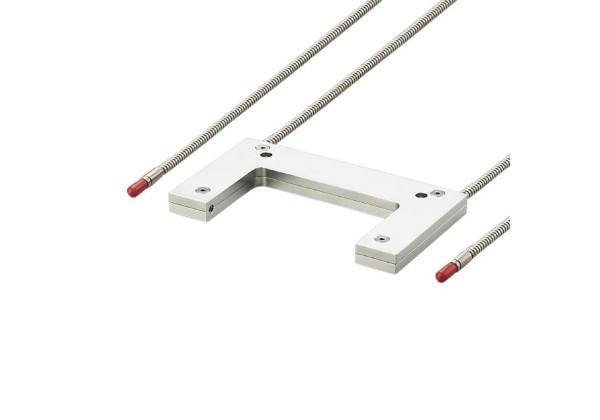

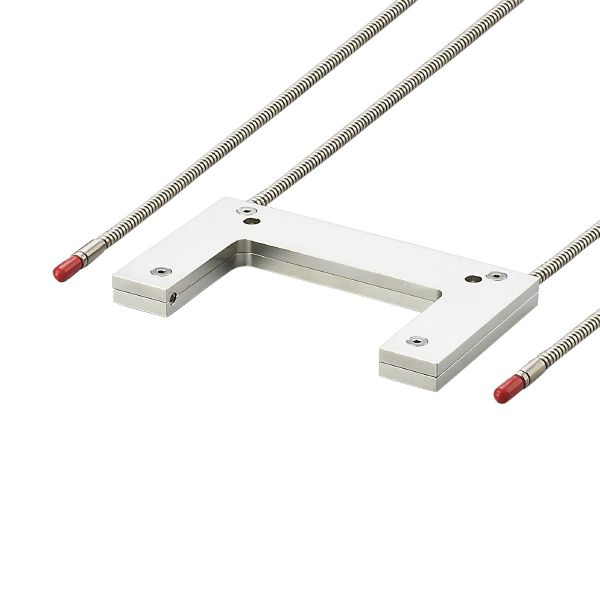

E21132 - efector200-FE-50-V-V-X/2,5M
Brand: IFM Electronic
Code: E21132
- For applications in high-temperature areas
- Stainless steel sheathing for use up to 315 °C
- Operation as photoelectric fork sensor
- Reliable detection of tiny objects
- Small bending radius
Application
| Function principle | Through-beam sensor |
|---|---|
| Application | High temperature resistance; Robust design for use in harsh industrial environments |
Detection zone
| Range with fibre-optic amplifier type | OBF; OMF |
|---|
| Range of fibre optics [mm] | 93 |
|---|
| Range of fibre optics [mm] | 93 |
|---|
Operating conditions
| Ambient temperature [°C] | -58...315 |
|---|
Mechanical data
| Weight [g] | 1161.5 |
|---|---|
| Sensing head height [mm] | 12 |
| Sensing head width [mm] | 143 |
| Sensing head length [mm] | 85 |
| Probe dimensions [mm] | 12 x 143 x 85 |
| Total length [mm] | 2500 |
| Min. bending radius [mm] | 19 |
| Materials | fixture: stainless steel (1.4301 / 304) |
| Fibre material | glass |
| Fibre head material | stainless steel (1.4305 / 303) |
| Fibre sheath material | stainless steel (1.4305 / 303) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21132-00 — 26.07.2010 —
