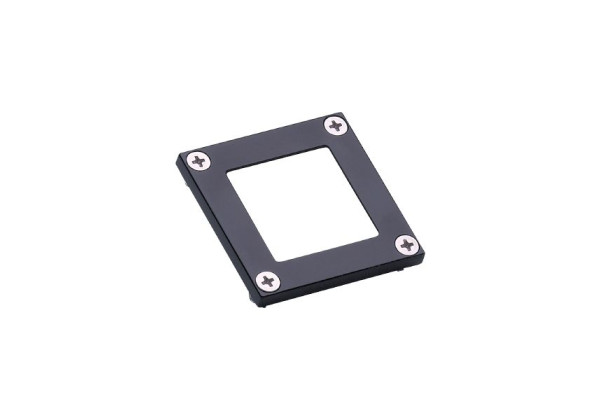

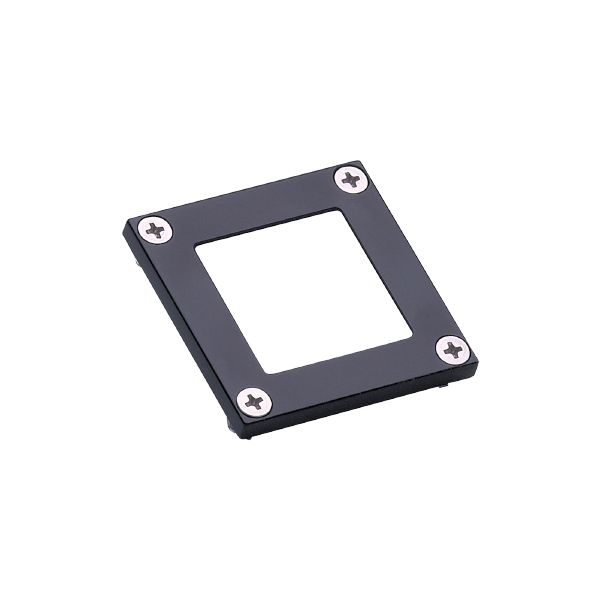

E21133 - efector200-MASKING FRAME FOR O1D

Code: E21133

For optical distance sensors type O1D
Efficient protection of the front pane against soiling and damage
Safe protection of the sensor against impact and shock
Easy, quick and inexpensive fixing
Robust design for use in harsh industrial environments

Mechanical data

Weight [g]	36.2
Dimensions [mm]	42 x 4.6 x 42
Materials	bezel: diecast zinc finish black; front pane: PMMA transparent and uncoloured; Sealing: FPM 75 ±5 Shore A; screws: stainless steel

Accessories

Items supplied

screws: 4 x M3 x 8

Remarks

By attaching the protective cover the measured distance value can be changed by up to +5 mm.

This deviation influences the specified accuracy.

The repeatability remains unchanged.

By soiling or scratching the front pane the repeatability and accuracy of the sensor can deteriorate.

Pack quantity

1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21133-00 — 05.04.2007 —
