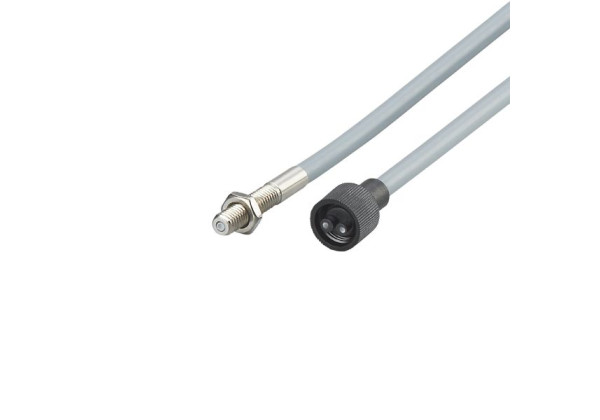

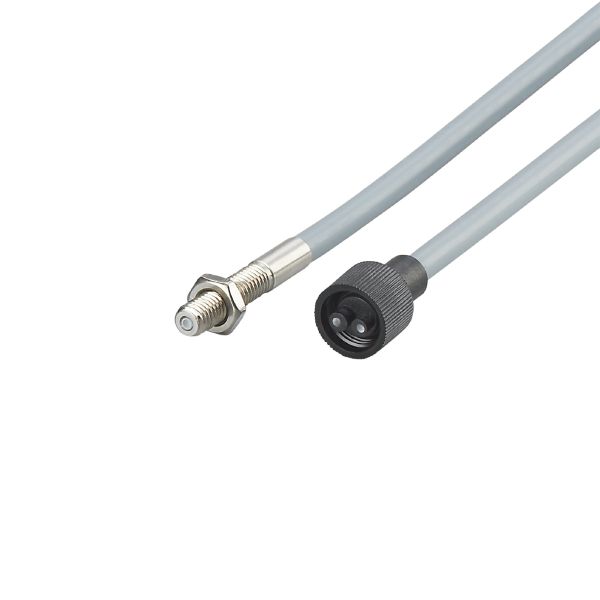

E21155 Fibre optic diffuse reflection sensor FT-00-M-W-M6/5M
Brand: IFM Electronic
Code: E21155
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- Long range
- Resistant to various aggressive chemicals
- Small bending radius
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | High temperature resistance; Robust design for use in harsh industrial environments; Resistant to various aggressive chemicals |
Detection zone
| Range with fibre optic amplifier type | OKF |
|---|
| Range fibre optics [mm] | 14 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...150 |
|---|
Mechanical data
| Weight [g] | 278.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M6 |
| Sensing head length [mm] | 35 |
| Total length [mm] | 5000 |
| Min. bending radius [mm] | 45 |
| Fibre arrangement | |
| Core diameter [mm] | 1.6 |
| Fibre diameter [mm] | 0.05 |
| External diameter [mm] | 5.4 |
| Fibre material | glass |
| Fibre head material | stainless steel (1.4571/316Ti ) |
| Fibre sheath material | metal silicone |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21155-00 — 12.07.2010 —
