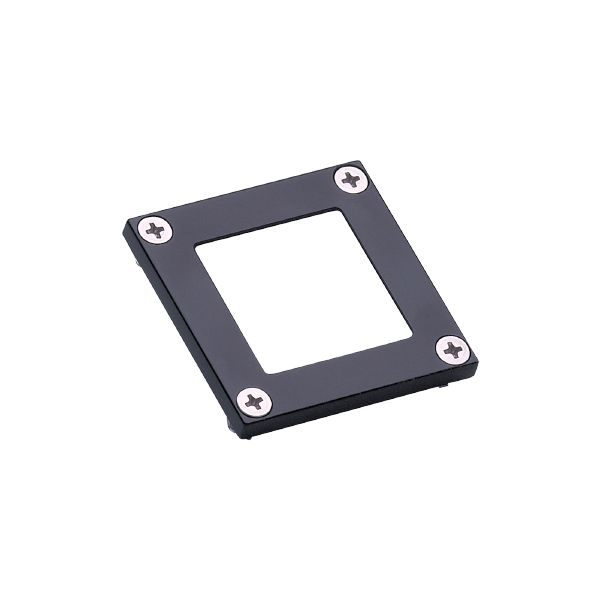

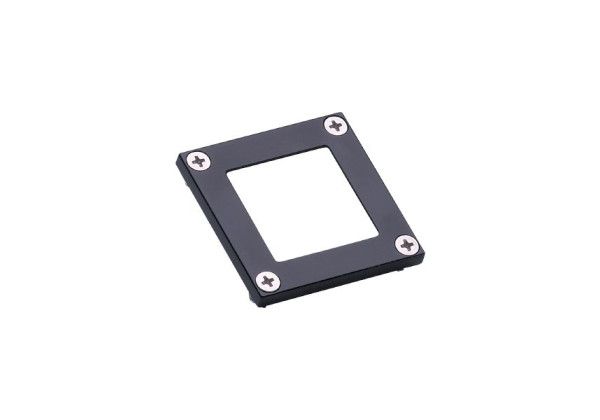

E21171 - efector200-MASKING FRAME FOR O1D GLAS

Code: E21171

For optical distance sensors type O1D
Efficient protection of the front pane against soiling and damage
Safe protection of the sensor against impact and shock
Easy, quick and inexpensive fixing
Robust design for use in harsh industrial environments

Mechanical data

Weight [g]	39.5
Dimensions [mm]	42 x 4.6 x 42
Materials	bezel: diecast zinc finish black; front pane: glass transparent and uncoloured; Sealing: FPM 75 ±5 Shore A; screws: stainless steel
Tightening torque [Nm]	0.6; (screws)

Accessories

Items supplied

screws: 4 x M3 x 8

Remarks

By attaching the protective cover the measured distance value can be changed by up to +5 mm.

This deviation influences the specified accuracy.

The repeatability remains unchanged.

By soiling or scratching the front pane the repeatability and accuracy of the sensor can deteriorate.

Pack quantity

1 pcs.
