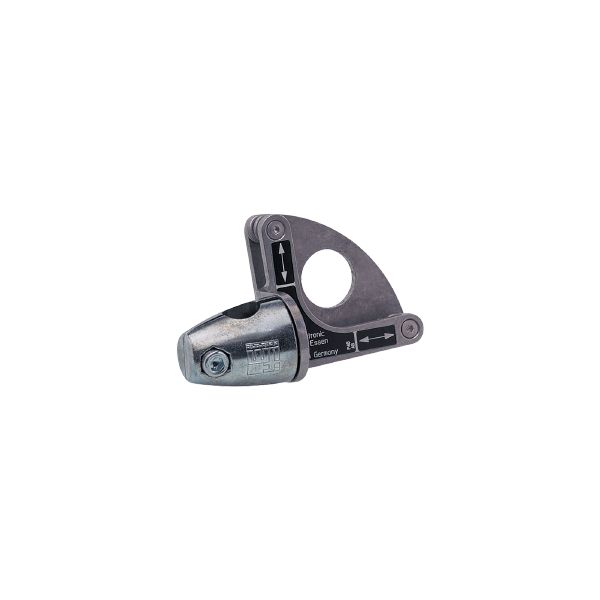

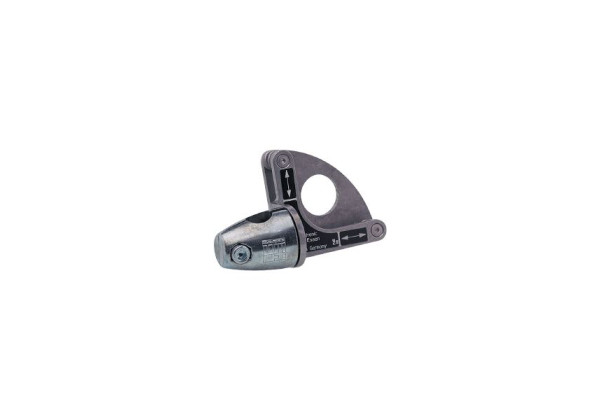

E21219 - efector200-M18 FINE ADJUSTMENT 200
Brand: IFM Electronic
Code: E21219
- User-friendly alignment of the laser beam to a laser receiver or prismatic reflector
- High vibration resistance
- Easy, quick and inexpensive fixing
- Robust design for use in harsh industrial environments
- For mounting to a mounting rod
Application
| Design | clamp mounting |
|---|
Mechanical data
| Weight [g] | 165 |
|---|---|
| Type of mounting | Mounting rod; (Ø 12 mm) |
| Dimensions [mm] | Ø 18.5 |
| Materials | fixture: stainless steel (1.4571/316Ti ); Clamp: diecast zinc |
| Alignment range | fine adjustment in 2 axes ± 3° |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21219-00 — 20.11.2007 —
