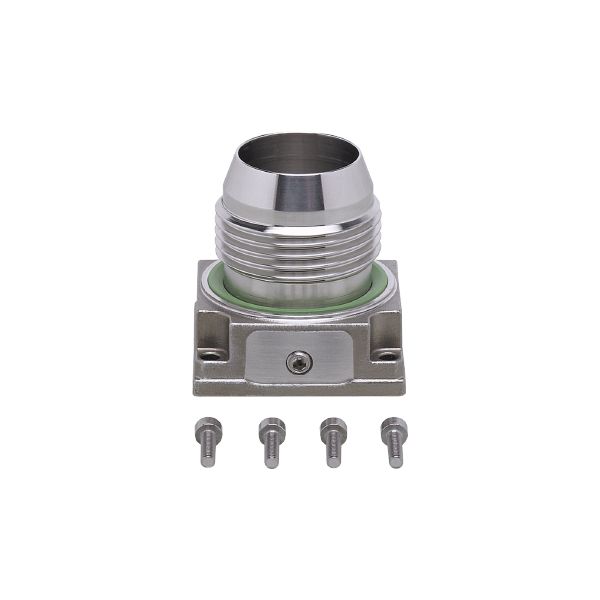

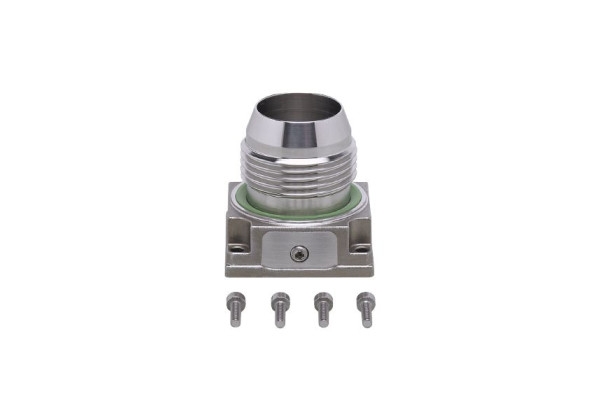

E21224 - efector200-FLANGE ADAPTER G1 FOR O1D
Brand: IFM Electronic
Code: E21224
- For optical distance sensors type O1D
- For installation in tanks and containers
- For use of the sensor for level measurement
- Easy, quick and inexpensive fixing
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for optical distance sensors |
|---|
Mechanical data
| Weight [g] | 231 |
|---|---|
| Dimensions [mm] | 42 x 43.5 x 42 |
| Materials | flange: stainless steel (1.4404 / 316L); Sealing: FKM; Protective cover: PMMA transparent; screws: stainless steel; washers: stainless steel |
| Tightening torque [Nm] | 0.6; (screws) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21224-00 — 04.03.2014 —
