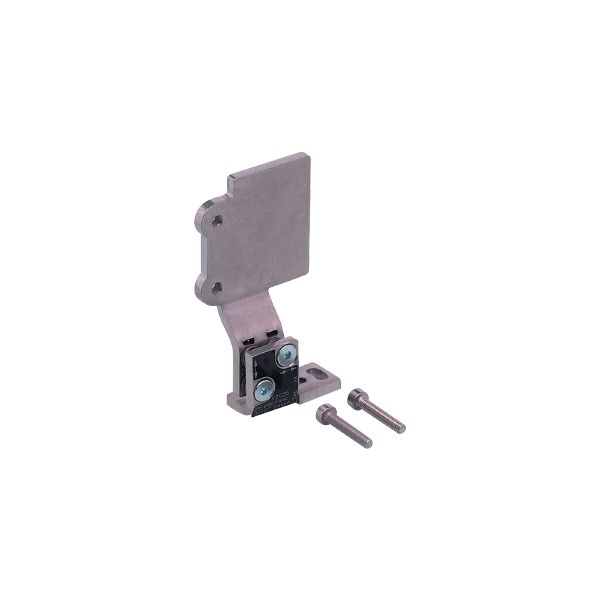

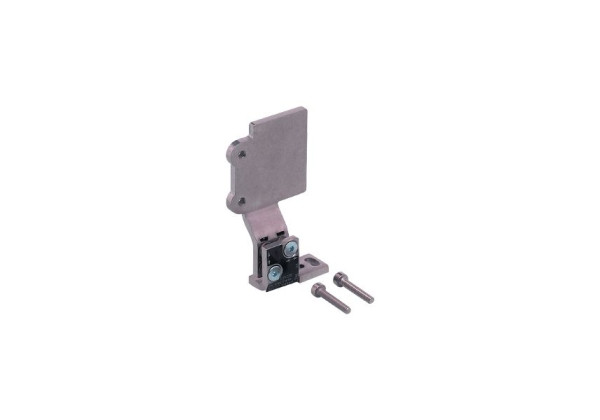

E21225 - efector200-SYSTEM COMPONENT OJ LASER
Brand: IFM Electronic
Code: E21225
- User-friendly alignment of the laser beam to a laser receiver or prismatic reflector
- High vibration resistance
- Easy, quick and inexpensive fixing
- Robust design for use in harsh industrial environments
- For free-standing mounting
Application
| Design | for front lens |
|---|
Mechanical data
| Weight [g] | 61.5 |
|---|---|
| Dimensions [mm] | 62 x 34 x 16.6 |
| Materials | stainless steel (1.4301 / 304) |
| Alignment range | fine adjustment in 2 axes ± 2° |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21225-00 — 23.10.2008 —
