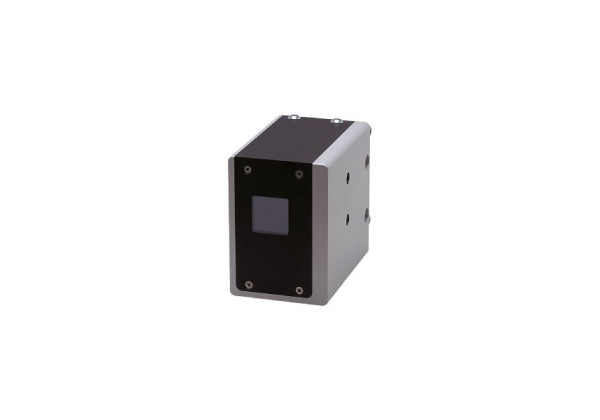

E21248 - efector200-COOLING BOX O1D

Code: E21248

Use for ambient temperatures up to 180 °C
Robust metal housing with integrated cooling circuit
Water or air cooling possible
Reliable protection against very harsh environmental conditions
For optical distance sensors type O1D

Application

Design	protective housing with an active cooling system for types O1D
Pressure rating [bar]	10

Operating conditions

Ambient temperature [°C]	-10...180

Mechanical data

Weight [g]	1270.5
Dimensions [mm]	112 x 70 x 108
Materials	housing: aluminium uncoloured anodised; cover: aluminium black anodised; bezel: aluminium black anodised; front pane: float glass; Cable gland: brass nickel-plated; nozzle: brass nickel-plated; Sealing: FKM

Accessories

Items supplied

socket head screws: 2 x M4 x 45

hexagon nuts: 2

Remarks

Pack quantity	1 pcs.

Diagrams and graphs
