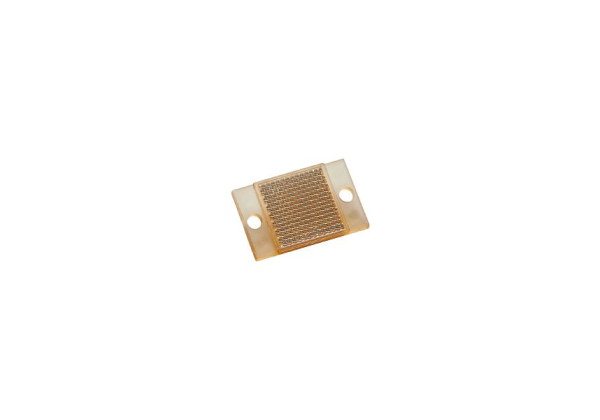

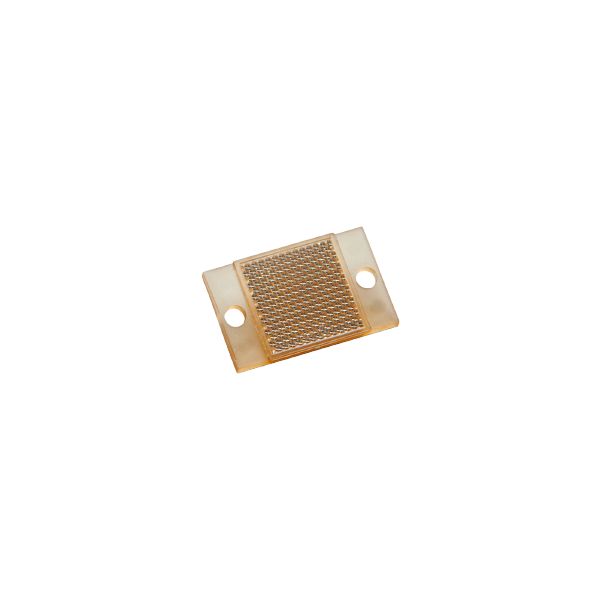

E21267 - efector200-REFLECTOR TS-18X18 SC
Brand: IFM Electronic
Code: E21267
- For the reliable operation of retro-reflective sensors
- Easy mounting using only two screws
- Suitable for red light and infrared light
- For applications in hygienic and wet areas in the food industry
- For use in high temperatures
Application
| Design | for hygienic and wet areas in the food industry, rectangular, for red light and infrared light retro-reflective sensors |
|---|
Operating conditions
| Ambient temperature [°C] | -20...140 |
|---|
Mechanical data
| Weight [g] | 3.5 |
|---|---|
| Dimensions [mm] | 20 x 32 x 3.5 |
| Reflector surface [mm] | 18 x 18 |
| Materials | Solidchem |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21267-00 — 07.03.2013 —
