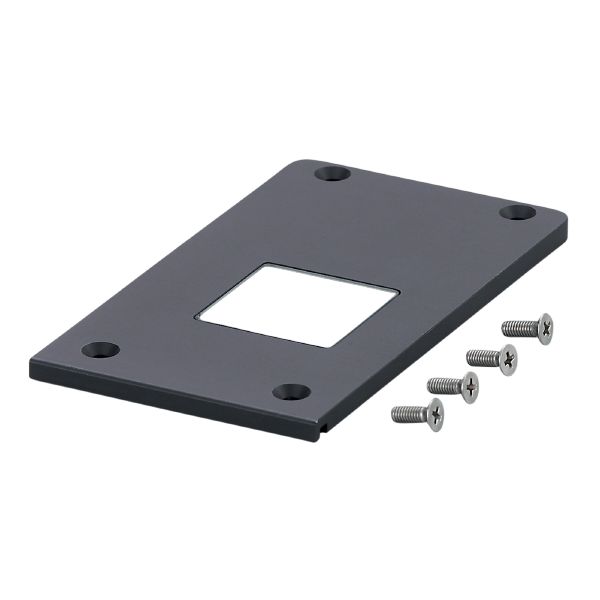

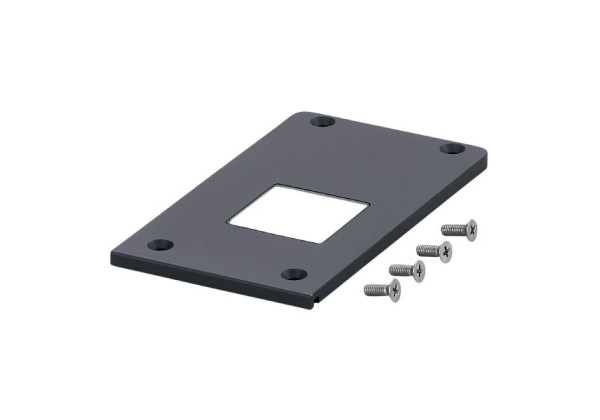

E21308 bezel for cooling box for distance sensors FRONT SCREEN COOLING BOX O1D
Brand: IFM Electronic
Code: E21308
Application
| Design | front frame for the protective housing with an active cooling system for sensors of the types O1D |
|---|---|
| Pressure rating [bar] | 10 |
Operating conditions
| Ambient temperature [°C] | -10...180 |
|---|
Mechanical data
| Weight [g] | 59.4 |
|---|---|
| Installation instruction | countersunk screws have to be secured with Loctite ® adhesive 243 and tightened with 150 Ncm |
| Dimensions [mm] | 95 x 54 x 4 |
| Materials | bezel: aluminium black anodised; front pane: float glass |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21308-00 — 05.06.2020 —
