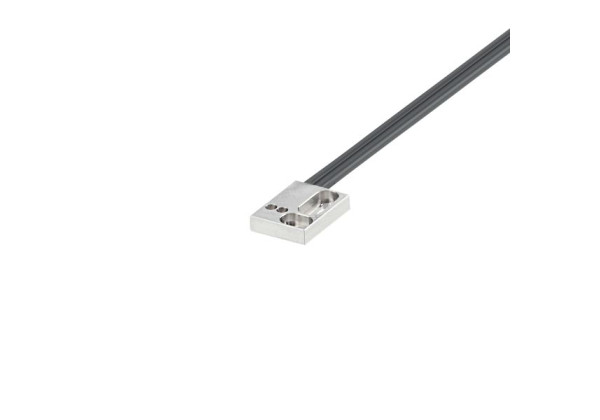

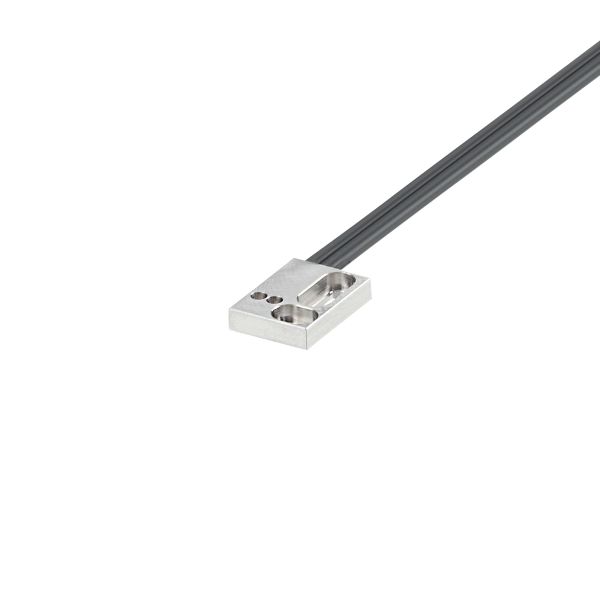

E21314 diffuse reflection sensor FT-11-EPV-Q3/F2x1/2m
Brand: IFM Electronic
Code: E21314
- Particularly flat rectangular design
- For installation in places where access is difficult
- For cutting to size
- Operation as diffuse reflection sensor
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre-optic amplifier type | OBF; OO50; OCF |
|---|
| Range of fibre optics [mm] | 25 |
|---|
| Range of fibre optics [mm] | 50 |
|---|
| Range of fibre optics [mm] | 300 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 45 |
|---|---|
| Version of sensing head | angled |
| Sensing head height [mm] | 3 |
| Sensing head width [mm] | 11 |
| Sensing head length [mm] | 15 |
| Probe dimensions [mm] | 3 x 11 x 15 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 2 |
| Fibre arrangement | |
| Core diameter [mm] | 1 |
| Fibre material | PMMA |
| Fibre head material | stainless steel (1.4305 / 303) |
| Fibre sheath material | PE |
Accessories
| Items supplied |
| |
|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21314-00 — 26.07.2022 —
