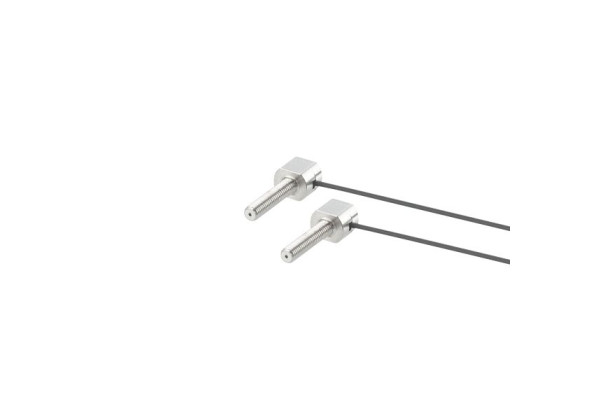

E21321 Fibre optic through-beam sensor FE-11-EPV-O3/F1x0,5/2m
Brand: IFM Electronic
Code: E21321
- For installation in places where access is difficult
- Operation as through-beam sensor
- For cutting to size
- Small bending radius
- Easy mounting and safe fixing
Application
| Function principle | Through-beam sensor |
|---|---|
| Application | For use in industrial environments |
Detection zone
| Range with fibre-optic amplifier type | OBF; OO50; OCF |
|---|
| Range of fibre optics [mm] | 56 |
|---|
| Range of fibre optics [mm] | 120 |
|---|
| Range of fibre optics [mm] | 500 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 35.2 |
|---|---|
| Version of sensing head | angled |
| Sensing head thread | M3 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 1 |
| Fibre arrangement | |
| Core diameter [mm] | 0.5 |
| Fibre material | PMMA |
| Fibre head material | stainless steel (1.4305 / 303) |
| Fibre sheath material | PE |
Accessories
| Items supplied |
| ||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21321-00 — 26.07.2022 —
