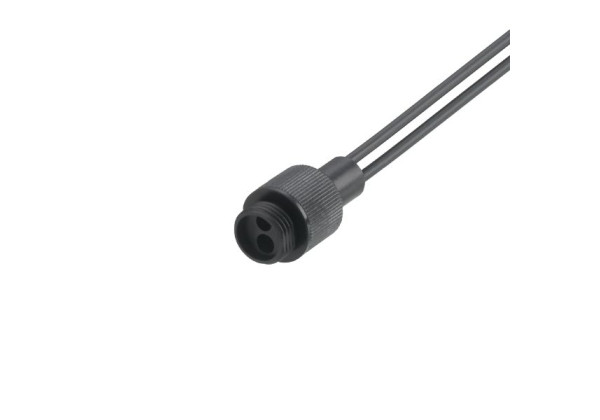

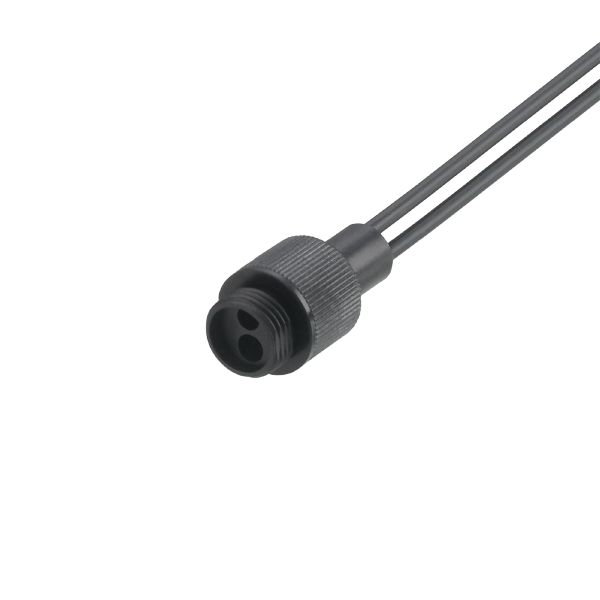

E21327 Adapter for fibre optics ADAPTER FOR FIBER OPTICS
Brand: IFM Electronic
Code: E21327
- Easy, quick and inexpensive fixing
- For the adaptation of fibre optics to fibre-optic amplifiers
Application
| Design | for fibre optics M11 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|
Mechanical data
| Weight [g] | 30.9 |
|---|---|
| Total length [mm] | 450; (wirable) |
| Min. bending radius [mm] | 30 |
| Fibre arrangement | |
| Core diameter [mm] | 1.0 |
| External diameter [mm] | 2.2 |
| Materials | Adapter: ABS; PPE; POM |
| Fibre material | PMMA |
| Fibre sheath material | PE |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E21327-00 — 12.08.2022 —
