E2D500 Mounting set Mounting Set Compact Cam

E2D500 Mounting set Mounting Set Compact Cam

Code: E2D500
Application
Design clamp mounting O2D5, for types O2I5
Mechanical data
Weight [g] 112.5
Type of mounting Mounting rod; (Ø 12 mm)
Materials Clamps: stainless steel (1.4404 / 316L); cylinder screws: hot galvanised M4 x 8; mounting bracket: stainless steel (1.4301 / 304)
Accessories

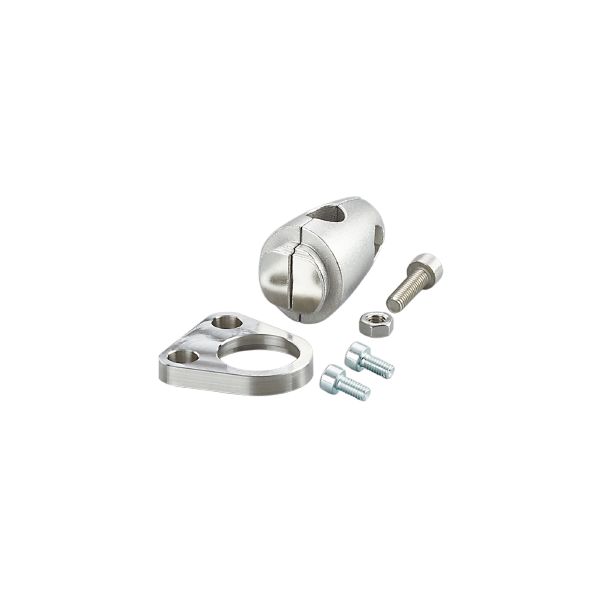

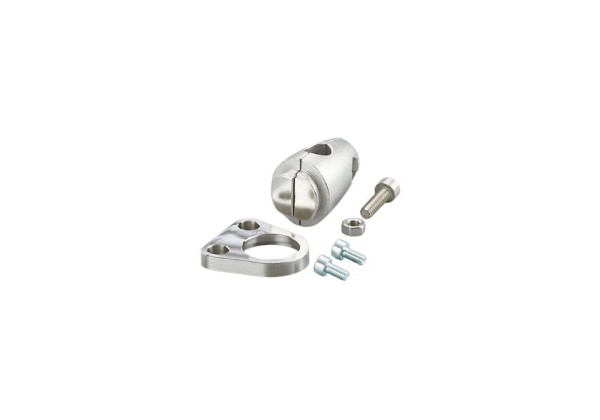

Items supplied
Clamps: 2
cylinder screws: 2 x M4 x 8
mounting bracket: 1
Hexagon nut: 1 x M5
head cap screw: 1 x M5 x 16
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E2D500-00 — 30.04.2019 —
