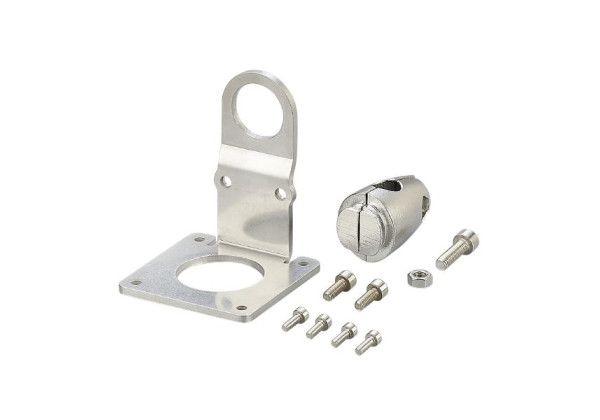

E2D501 Mounting set for illumination unit Mounting Set Domelight / CC

Code: E2D501

Application

Design	for type O2I5xx

Mechanical data

Weight [g]	224.5
Type of mounting	mounting via screws; Mounting rod; 12 mm
Materials	Clamp: stainless steel (1.4408); cylinder screws: stainless steel; mounting bracket: stainless steel (1.4301 / 304)

Accessories

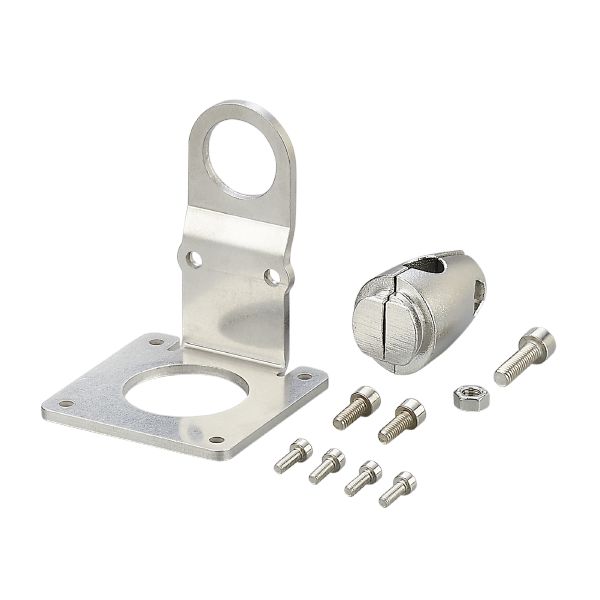

Items supplied

mounting bracket: 1

cylinder screws: 2 x M4 x 10

cylinder screws: 4 x M3 x 8

Clamp: 1

Hexagon nut: 1 x M5

head cap screw: 1 x M5 x 16

Remarks

Pack quantity	1 pcs.

Diagrams and graphs

Installation

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E2D501-00 — 07.11.2019 —
