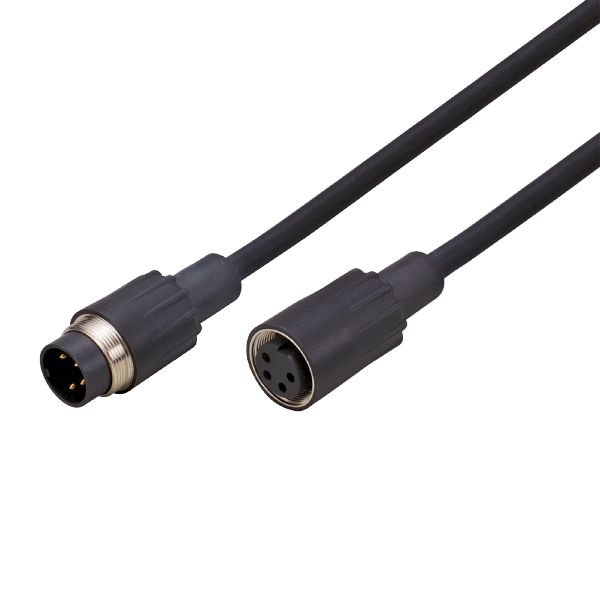

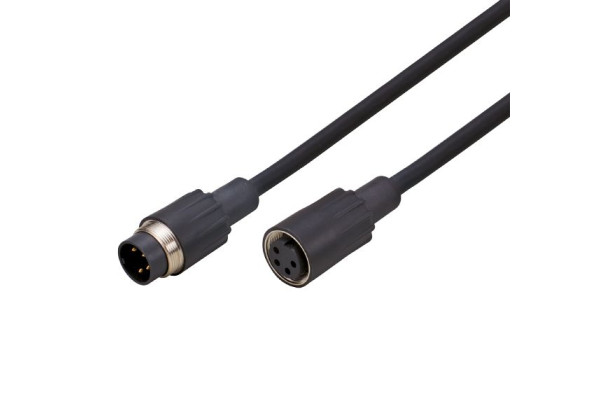

E2M205 - efector250-CONNECTION CABLE M16 16M
Brand: IFM Electronic
Code: E2M205
- Reliable connection of mobile cameras with video output
- Gold-plated contacts for reliable signal transmission
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Good electromagnetic compatibility thanks to shielded cable
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Design | camera with video output O2M20x |
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 60 DC |
|---|---|
| Protection class | II |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -45...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 858.5 |
|---|---|
| Materials | housing: PVC; Sealing: EPDM |
| Material nut | PVC |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x M16, straight; coding: A; Locking: PVC; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
Electrical connection
| Connection | Cable: 16 m, PVC, black, Ø 6 mm; 3 x 0.34 mm² / AWG 22 + 1 x 0.11 mm² / AWG 26 |
|---|
Electrical connection - socket
| Connector: 1 x M16, straight; coding: A; Locking: PVC; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E2M205-00 — 13.02.2014 —
