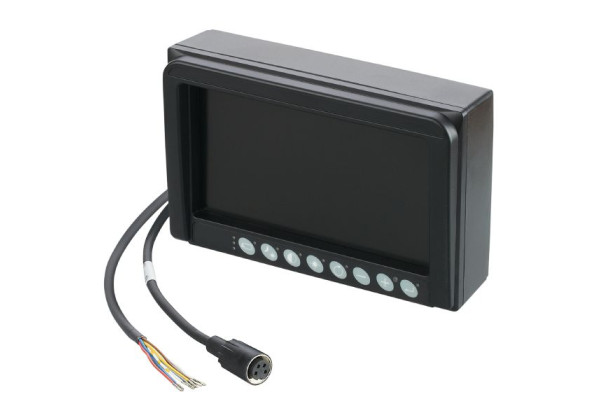

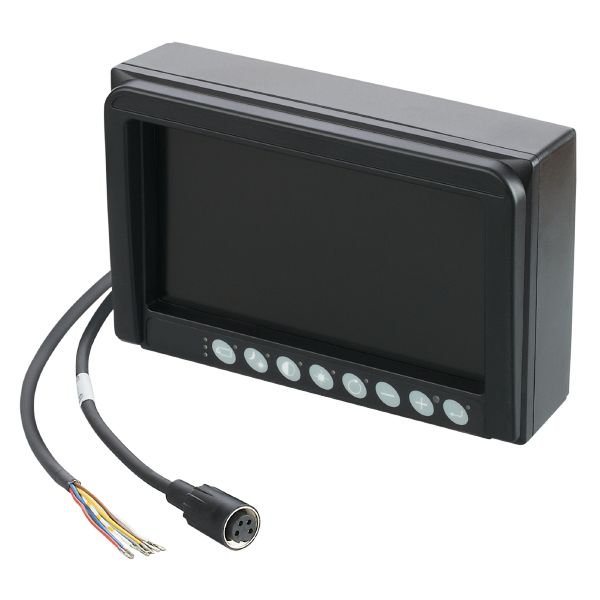

E2M231 - MONITOR ANALOGUE VIDEO INPUT/1 PORT
Brand: IFM Electronic
Code: E2M231
Application
| Application | Monitor for up to 1 O2M2xx / O3M2xx camera |
|---|
Electrical data
| Operating voltage [V] | 12...32 DC; (± 10%) |
|---|---|
| Overvoltage protection | yes |
| Power supply for camera [mA] | 2000; (± 10%) |
Inputs
| Video input | 1 Vtt, 75 Ω, PAL 50 Hz, 4,43 MHz color sub carr |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...125 |
| Storage humidity [%] | < 75; (relative humidity) |
| Shelf life [MON] | 24 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance |
|
|---|
Mechanical data
| Weight [g] | 1202.5 |
|---|---|
| Materials | housing: ABS black; fixture: aluminium black |
Displays / operating elements
| Display type | colour display |
|---|---|
| Display size | 7" |
Remarks
| Remarks |
| |||
|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - socket
| Connection | Cable: 2 m |
|---|---|
| Connection | Connector: 1 x M16; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E2M231-01 — 21.04.2023 —
