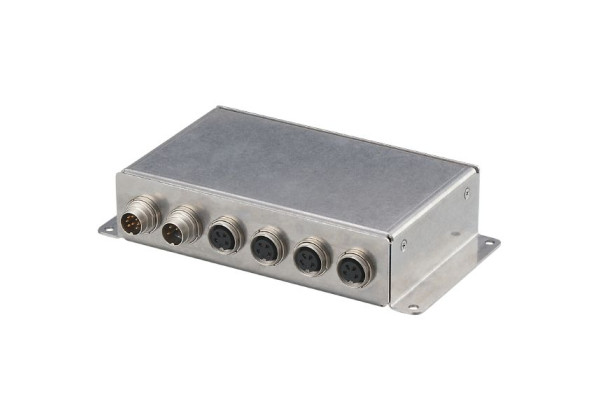

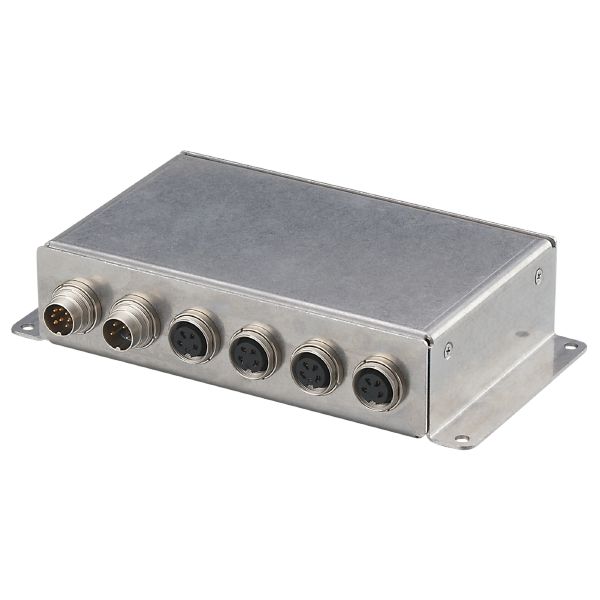

E2M250 MultiViewBox MULTIVIEWBOX/4 PORT
Brand: IFM Electronic
Code: E2M250
- Video splitter for up to four camera images
- With nine different display types including bird view for a round-about view of four camera images
- Universal use due to analogue video output
- Robust fully potted housing for use in mobile machines
Product characteristics
| Image resolution [px] | 680 x 480 |
|---|
Electrical data
| Operating voltage [V] | 10...32 DC |
|---|---|
| Current consumption [mA] | < 770 |
| Overvoltage protection | yes |
Detection zone
| Image resolution [px] | 680 x 480 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...125 |
| Storage humidity [%] | < 75; (relative humidity) |
| Shelf life [MON] | 24 |
| Protection | IP 67; (ISO 20653) |
Tests / approvals
| EMC |
| ||||||
|---|---|---|---|---|---|---|---|
| Shock resistance |
| ||||||
| Vibration resistance |
|
Mechanical data
| Weight [g] | 1569.5 |
|---|---|
| Materials | housing: stainless steel (316 / 1.4401) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection -..C4
| Connector: 4 x M16; coding: A |
Electrical connection - INPUT
| Connector: 1 x M16; coding: A |
Electrical connection - OUTPUT
| Connector: 1 x M16; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E2M250-01 — 09.01.2017 —
