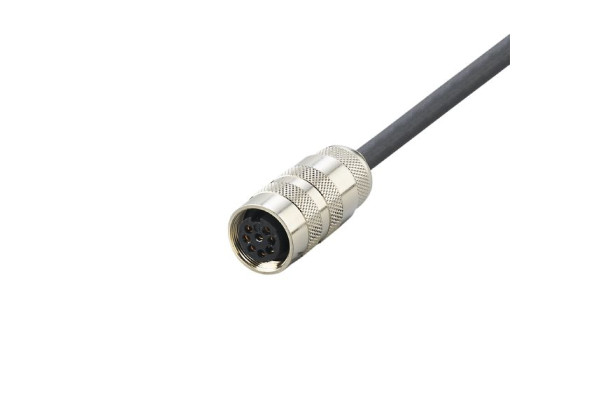

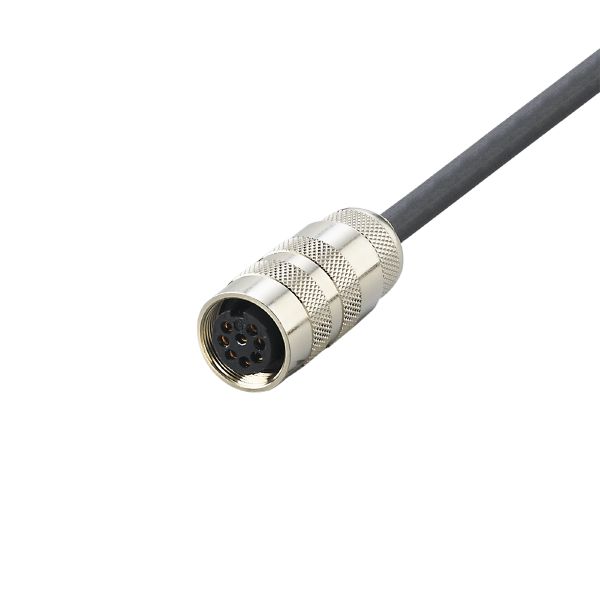

E2M251 - efector250-CONNECTION CABLE M16 8P 3,85M
Brand: IFM Electronic
Code: E2M251
- Reliable connection of mobile cameras with video output
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- 8-pole connection
Application
| Special feature | Halogen-free; Drag chain suitability |
|---|---|
| Design | For connection of the MultiViewBox E2M250 |
Electrical data
| Operating voltage [V] | < 60 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -45...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 322.8 | ||
|---|---|---|---|
| Materials | housing: diecast zinc; Sealing: PBT | ||
| Material nut | diecast zinc | ||
| Drag chain suitability | yes | ||
| Drag chain suitability |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 3.85 m, PUR, Halogen-free, black, Ø 6 mm; 7 x 0.34 mm² |
Electrical connection - socket
| Connector: 1 x M16, straight; coding: A; Locking: diecast zinc |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E2M251-00 — 29.09.2016 —
