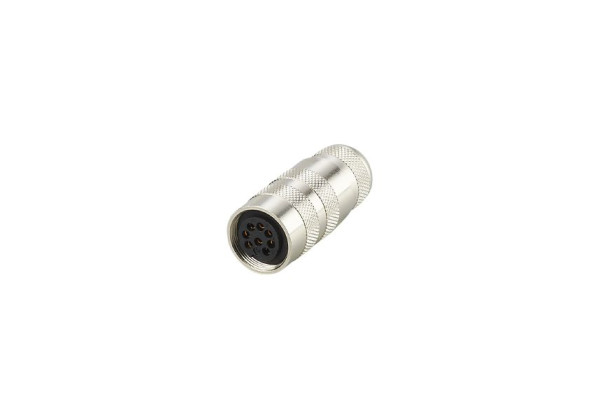

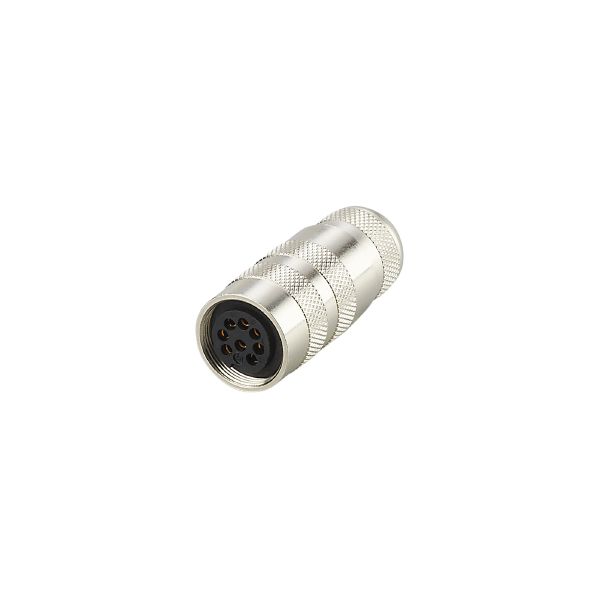

E2M252 - efector250-WIRABLE SOCKET M16 8P
Brand: IFM Electronic
Code: E2M252
- Reliable connection of mobile cameras with video output
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- 8-pole connection
- Safe cable connection with screw terminals
Application
| Design | camera with video output O2M20x |
|---|
Electrical data
| Operating voltage [V] | < 60 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -45...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 36.9 |
|---|---|
| Materials | housing: diecast zinc; Sealing: PBT |
| Material nut | diecast zinc |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals: |
Electrical connection - socket
| Connector: 1 x M16, straight; Locking: diecast zinc |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E2M252-00 — 30.09.2016 —
