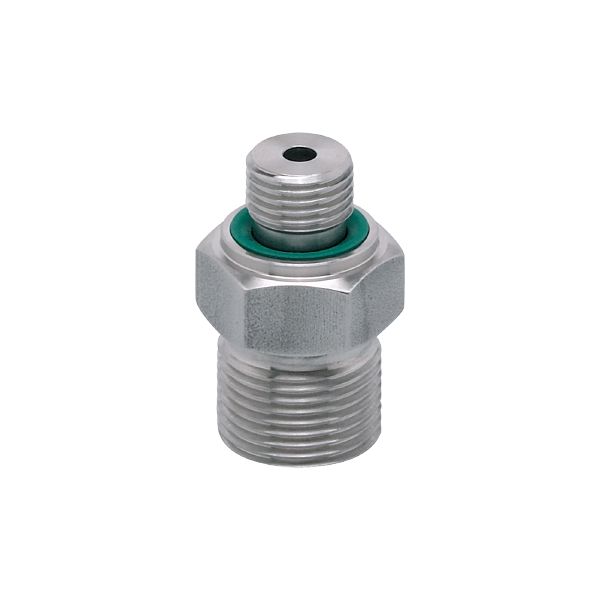

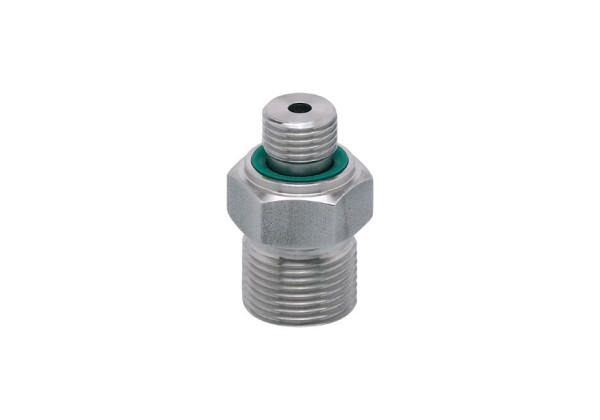

E30010 - efector500-ADAPT PX G1/4A-M20X1,5A
Brand: IFM Electronic
Code: E30010
- For the installation of pressure sensors in containers and pipes
- Easy, quick and secure mounting
- Use in industrial and mobile hydraulics
- High pressure rating
- Stable fixing by screwing in
Application
| Pressure rating [bar] | 200 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 78.7 |
|---|---|
| Dimensions [mm] | M20 |
| Thread designation | M20 |
| Materials | stainless steel (1.4305 / 303); FKM |
| Sensor connection | G 1/4 |
| Process connection | threaded connection M20 x 1,5 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30010-00 — 26.06.2013 —
