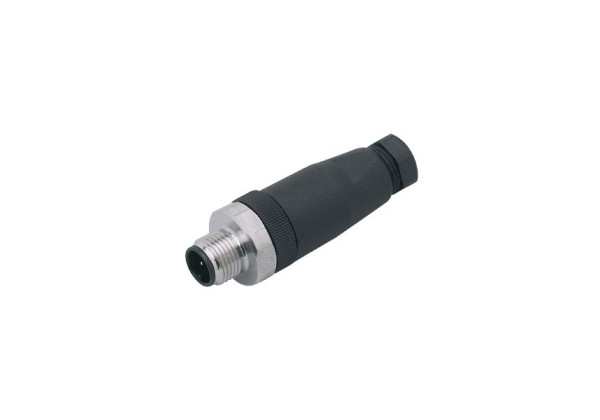

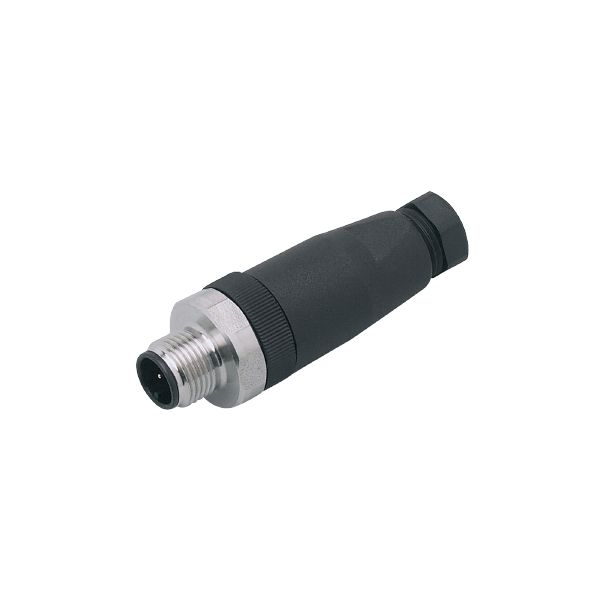

E30019 - ecomat400-SSTGH040VASFPKG
Brand: IFM Electronic
Code: E30019
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection with screw terminals
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 10...55 DC |
|---|---|
| Max. current load total [A] | 4; (...40 °C) |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 23 |
|---|---|
| Dimensions [mm] | 20 x 20 x 52 |
| Materials | PA |
| Moulded-body material | PA |
| Material nut | stainless steel (1.4571/316Ti ) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals:...0.75 mm²; Cable sheath: Ø 4...6 mm |
Electrical connection - plug
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PA; Locking: stainless steel (1.4571/316Ti ); Contacts: gold-plated |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30019-00 — 06.03.2003 —
