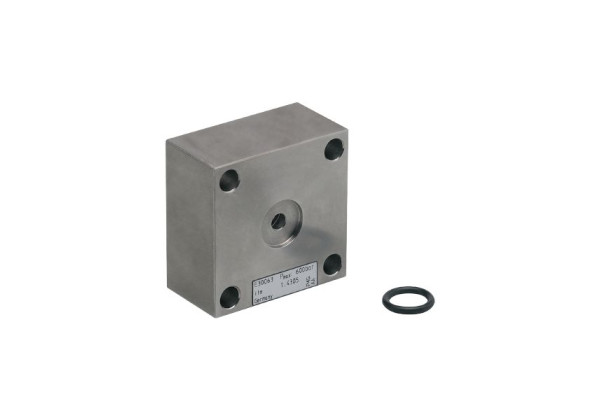

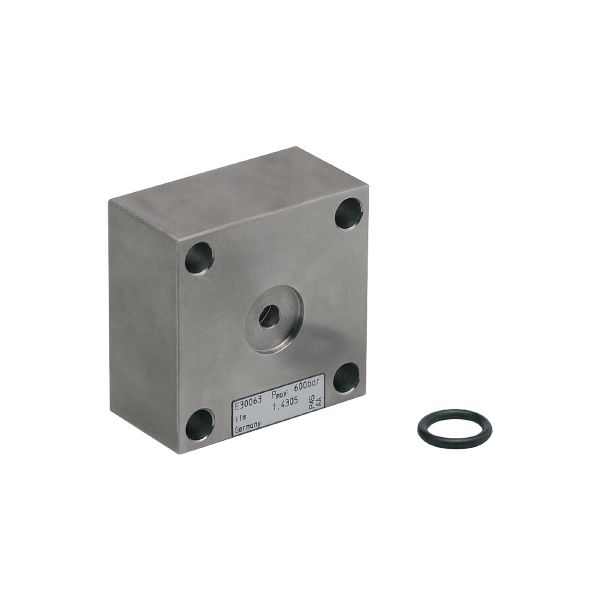

E30063 - efector500-FLANGE ADAPTER G1/4
Brand: IFM Electronic
Code: E30063
- Quick and easy mounting
- Very high pressure rating
- Robust stainless steel design for use in harsh industrial environments
- Good sealing due to O-ring
Application
| Design | for pressure sensors PP7 / PK |
|---|---|
| Pressure rating [bar] | 600 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 243.2 |
|---|---|
| Materials | stainless steel (1.4305 / 303); O-ring: NBR |
| Sensor connection | G 1/4 external thread |
| Process connection | flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30063-00 — 11.07.2012 —
