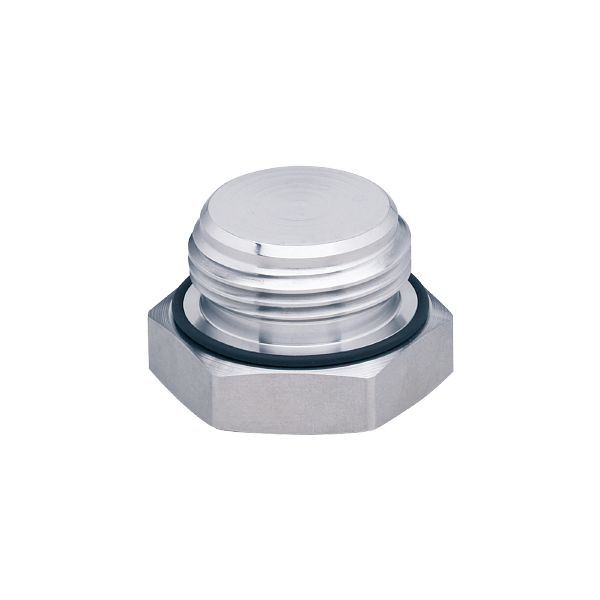

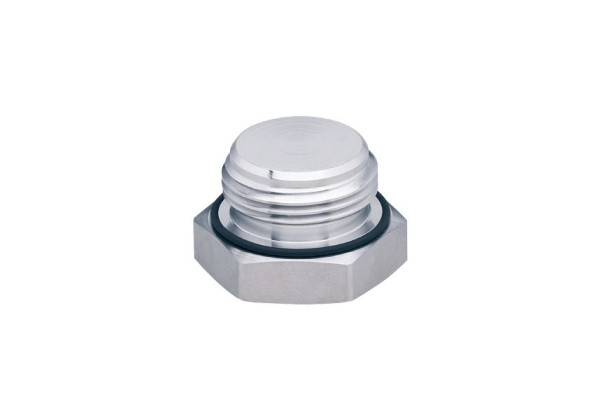

E30064 - efector500-M0 VERSCHLSTOPF V4A
Brand: IFM Electronic
Code: E30064
- Reliable covering of unused process connections
- Efficient protection against warp or damage of the thread during welding
- Particularly suited for use in hygienic applications
- Robust stainless steel design for use in harsh industrial environments
Application
| Pressure rating [bar] | 100 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 167.2 |
|---|---|
| Materials | stainless steel |
| Process connection | threaded connection external thread Aseptoflex |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30064-00 — 16.03.2023 —
