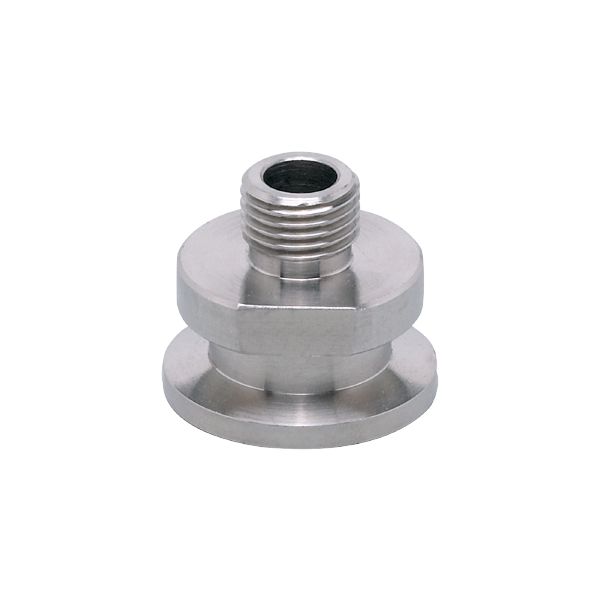

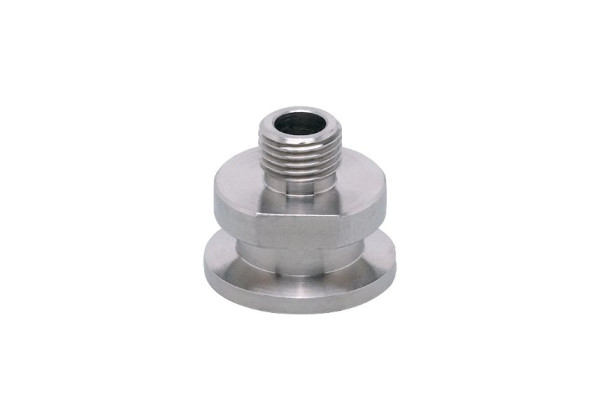

E30065 - efector500-ADAPT G1/4-KLEINFLSH NW16
Brand: IFM Electronic
Code: E30065
- For the installation of pressure sensors in containers and pipes
- Easy, quick and secure mounting
- Use in industrial and mobile hydraulics
- High pressure rating
- Stable fixing with clamps
Application
| Design | small flange G1/4 - DIN 28403 DN16 |
|---|---|
| Pressure rating [bar] | 10 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 67 |
|---|---|
| Materials | stainless steel (1.4301 / 304) |
| Sensor connection | G 1/4 |
| Process connection | flange DN16 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30065-00 — 26.06.2013 —
