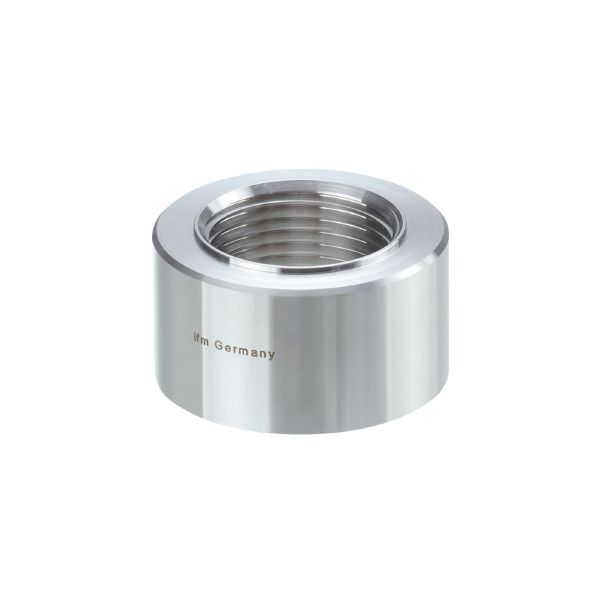

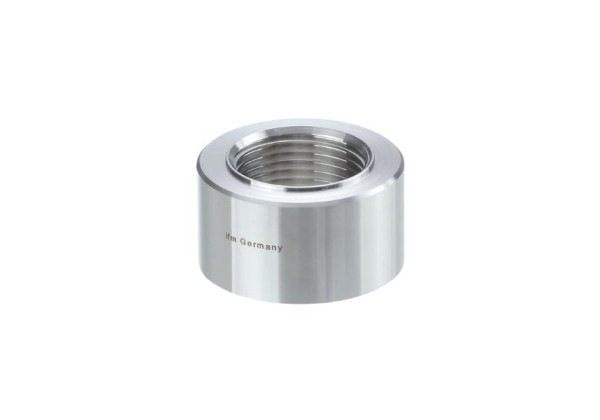

Einschweißadapter für Prozesssensoren E30072 WELDING ADAPT G1 O-RG

Brand: IFM Electronic

Code: E30072

Welding adapter for process sensors
For use in industrial and hygienic applications
Robust stainless steel design for use in harsh industrial environments
High pressure rating

Application

Pressure rating [bar]

150

Note on pressure rating

for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Pressure Equipment Directive EAC	The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013.
Safety instructions	The compatibility between medium and product material has to be checked in all applications.

Mechanical data

Weight [g]	292.5
Materials (wetted parts)	stainless steel (1.4404 / 316L) ; surface characteristics : Ra<0,4 / Rz 4; O-ring: FPM; O-ring: EPDM
Sensor connection	G 1 sealing cone
Process connection	welding adapter Ø 50 mm
Sealing	Gasket

Accessories

Items supplied

O-ring: 26 x 3, EPDM, FDA compliant, E30438

O-ring: 26 x 3, FKM, FDA compliant, E30437

Remarks

Pack quantity	1 pcs.
