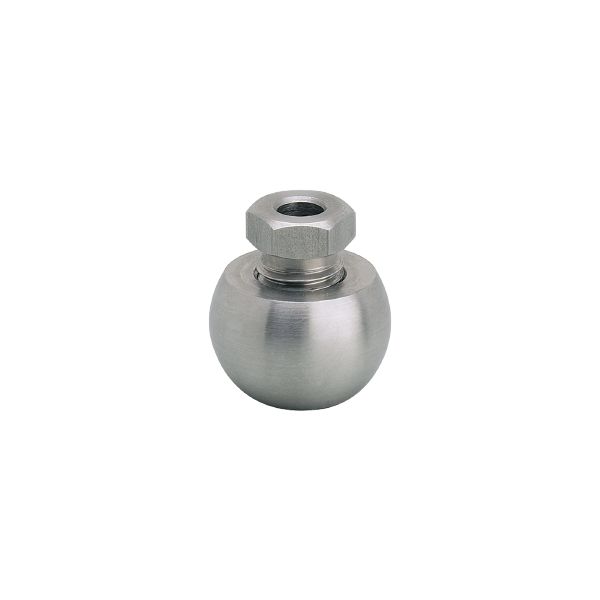

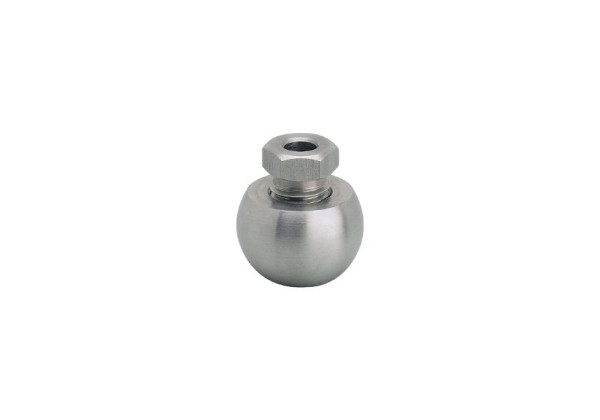

E30108 - efector600-WELDING ADAPTER D6
Brand: IFM Electronic
Code: E30108
- Welding adapter for process sensors
- For use in industrial and hygienic applications
- Robust stainless steel design for use in harsh industrial environments
- High pressure rating
- Easy adjustment of the immersion depth of the sensor
Application
| Design | for temperature sensors Ø 6 mm |
|---|---|
| Installation | Clamp fitting |
| Pressure rating [bar] | 160 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 63 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | Ø 6 mm |
| Process connection | welding adapter Ø 24,7 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30108-00 — 22.03.2006 —
