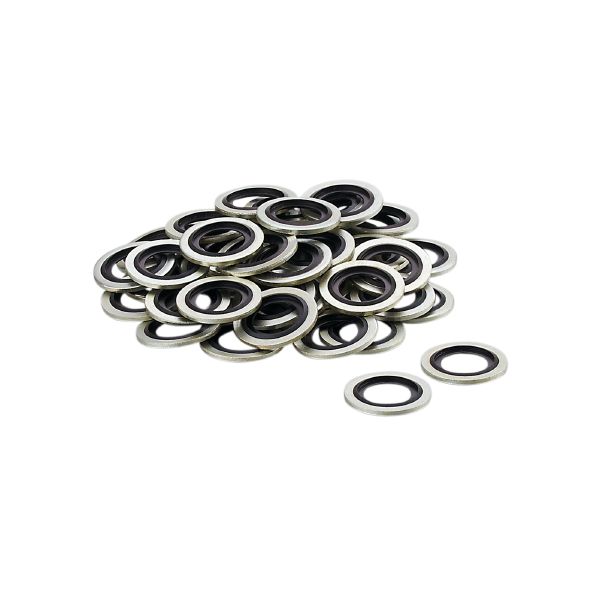

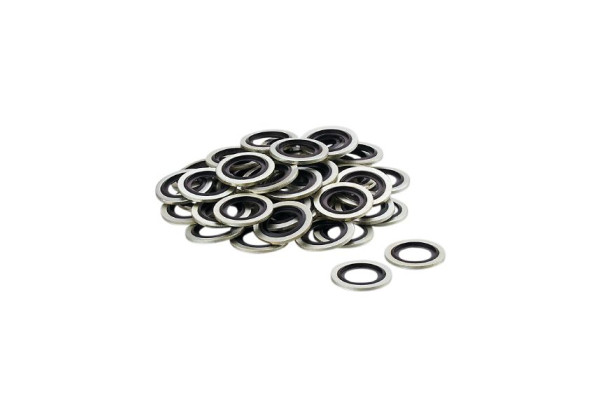

E30111 - efector500-U-SEAL 50 ST
Brand: IFM Electronic
Code: E30111
- For reliably sealing tanks, containers and pipes
- For use in combination with process sensors
- Very high pressure rating
- Wide operating temperature range
Application
| Medium temperature [°C] | -30...100 |
|---|---|
| Pressure rating [bar] | 400 |
Operating conditions
| Ambient temperature [°C] | -30...100 |
|---|
Mechanical data
| Weight [g] | 96.5 |
|---|---|
| Inside diameter [mm] | 12 |
| External diameter [mm] | 21 |
| Materials | NBR; steel |
Remarks
| Pack quantity | 50 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30111-00 — 04.12.2012 —
