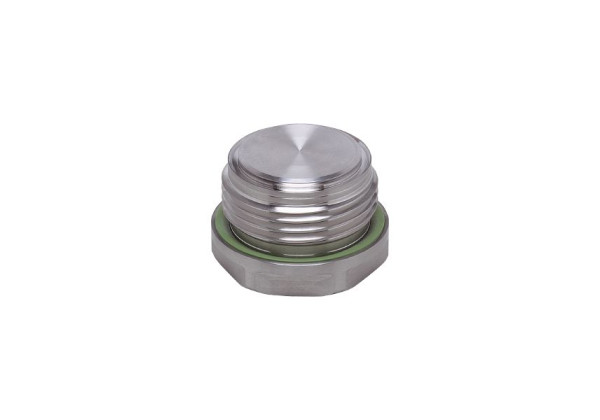

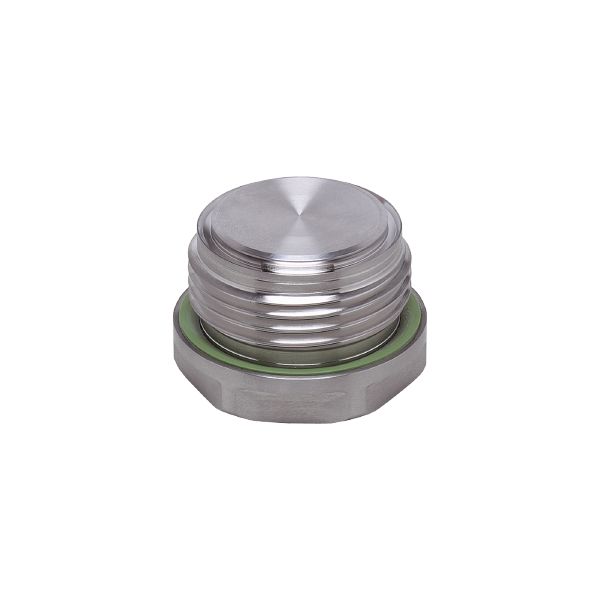

E30128 - efector500-ADAPTER PLUG ASEPTOFLEX VARIO

Code: E30128

Reliable covering of unused process connections
Efficient protection against warp or damage of the thread during welding
Particularly suited for use in hygienic applications
Robust stainless steel design for use in harsh industrial environments

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Pressure Equipment Directive EAC	The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013.
Safety instructions	The compatibility between medium and product material has to be checked in all applications.

Mechanical data

Weight [g]	203
Materials (wetted parts)	stainless steel (1.4435 / 316L) surface characteristics : Ra<0,4 / Rz 4; Gasket: FKM
Process connection	threaded connection G 1 external thread Aseptoflex Vario

Accessories

Items supplied

O-rings: 1 x 24 x 2 (EPDM), in contact with the medium, E30054

O-rings: 1, DIN 3869-33-FKM

Accessories (optional)

O-ring: 24 x 2 (FKM), in contact with the medium, E30123

sealing ring: PEEK, in contact with the medium, E30124

Remarks

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30128-01 — 12.02.2014 —
