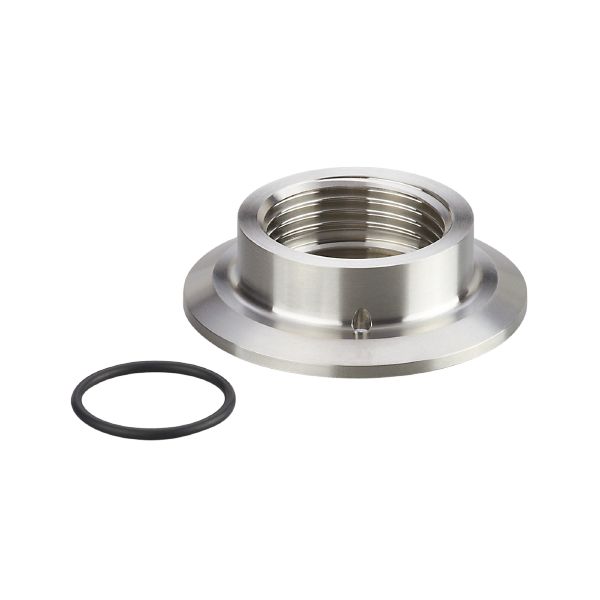

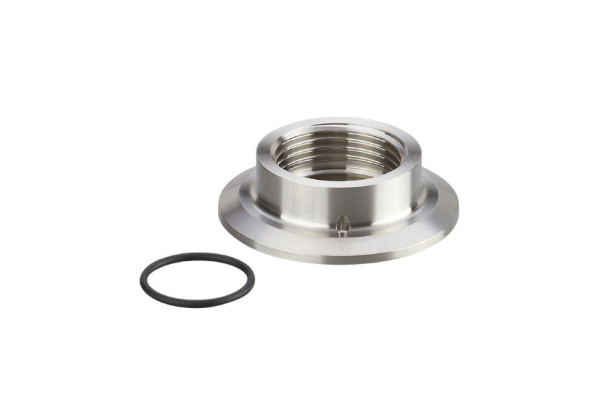

E30149 - WELDING ADAPT D60/G1 LEAK PORT

Brand: IFM Electronic

Code: E30149

Welding adapter for process sensors
For use in industrial and hygienic applications
Robust stainless steel design for use in harsh industrial environments
High pressure rating

Application

Design

with leakage port

Installation

for thin wall thicknesses

Pressure rating [bar]

Note on pressure rating

for the connection sensor - adapter

Tests / approvals

Pressure Equipment Directive	A possible classification to PED depends on the application and has to be carried out by the user / operator.
Pressure Equipment Directive EAC	The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013.
Safety instructions	The compatibility between medium and product material has to be checked in all applications.

Mechanical data

Weight [g]	158
Materials (wetted parts)	stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4
Sensor connection	G 1 Aseptoflex Vario
Process connection	welding adapter Ø 60 mm
Sealing	Gasket

Accessories

Items supplied

O-ring: 1 x 24 x 2, EPDM, FDA compliant, E30054

Accessories (optional)

O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123

Remarks

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30149-00 — 21.09.2017 —
