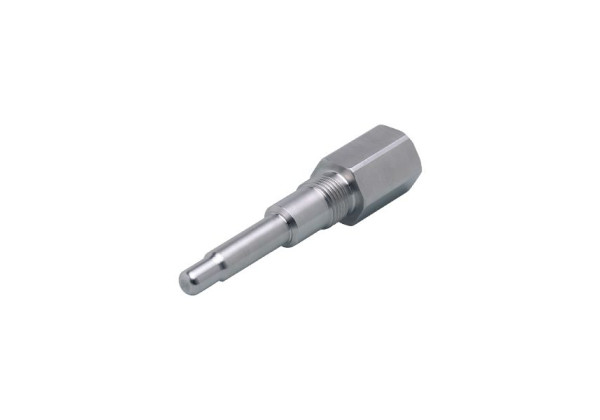

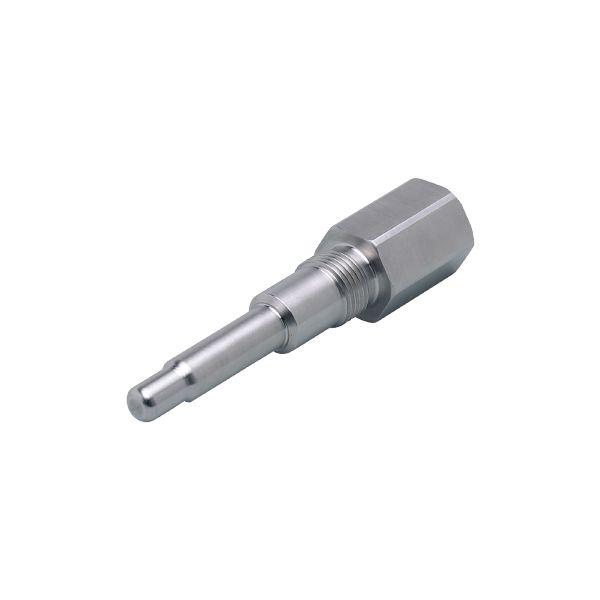

E30393 - efector600-PROTECTIVE TUBE FOR TA
Brand: IFM Electronic
Code: E30393
- Efficient long-time protection of the temperature sensor
- Protection against aggressive media and high process pressures
- Easy replacement of the temperature sensor during operation
- For use in hygienic applications
- Approved for the requirements of the food and beverage industry
Application
| Design | for temperature sensors TA34xx, TAA431, TAD191 |
|---|---|
| Pressure rating [bar] | 300 |
Measuring/setting range
| Probe length L [mm] | 53 |
|---|
Mechanical data
| Weight [g] | 172.9 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | 30...50 |
| Sensor connection | G 1/2 sealing cone Ø 8,2 mm |
| Process connection | G 1/2 |
| Surface characteristics Ra/Rz of the wetted parts | < 0.6 / - |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30393-00 — 02.08.2005 —
