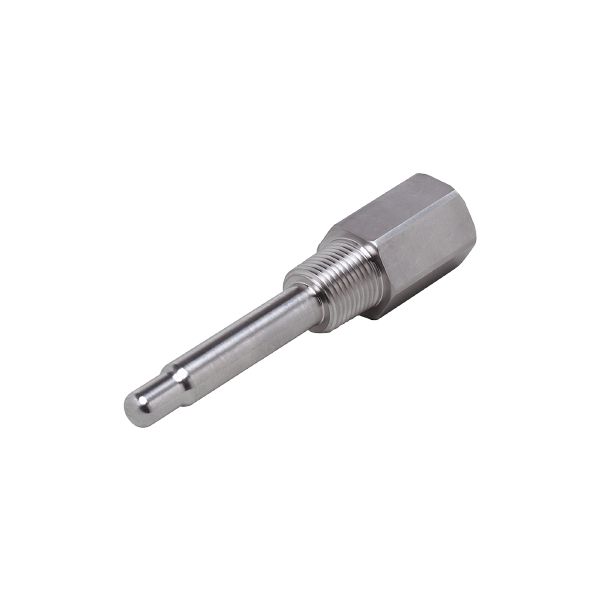

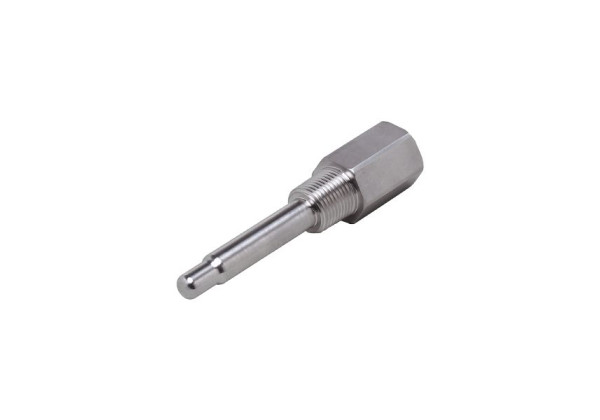

E30397 - efector600-PROTECTIVE TUBE FOR TA 1/2 NPT
Brand: IFM Electronic
Code: E30397
- Efficient long-time protection of the temperature sensor
- Protection against aggressive media and high process pressures
- Easy replacement of the temperature sensor during operation
Application
| Design | for temperature sensors TA34xx, TAA4xx |
|---|---|
| Pressure rating [bar] | 300 |
Measuring/setting range
| Probe length L [mm] | 69 |
|---|
Mechanical data
| Weight [g] | 164.15 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1/2 sealing cone Ø 8,2 mm |
| Process connection | 1/2" NPT |
| Surface characteristics Ra/Rz of the wetted parts | < 0.6 / - |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30397-00 — 12.11.2007 —
