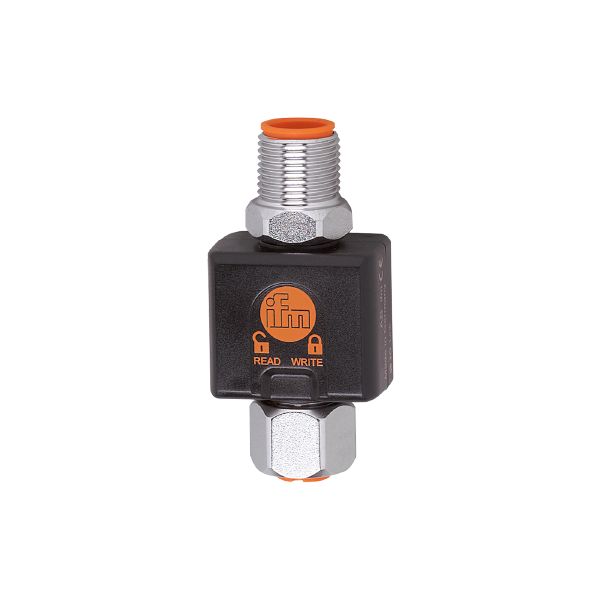

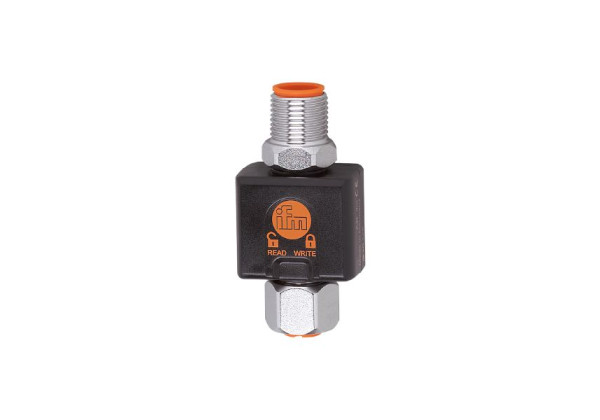

E30398 - efector500-MEMORY PLUG
Brand: IFM Electronic
Code: E30398
- Quick and easy parameter setting of IO-Link sensors
- User-friendly copying and saving of sensor data
- Uncomplicated replacement of a faulty unit
- Re-writable as often as desired
- Easy connection via the tried-and-tested M12 connector
Electrical data
| Operating voltage [V] | 18...32 DC |
|---|---|
| Current consumption [mA] | < 35 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Output signal | IO-Link |
|---|---|
| Electrical design | PNP |
| Max. voltage drop switching output DC [V] | 0.5 |
| Permanent current rating of switching output DC [mA] | 500; (briefly: 2 A / 50 ms) |
| Type of short-circuit protection | depending on the connected sensor |
Interfaces
| Communication interface | IO-Link |
|---|
| Transmission type | COM2 (38,4 kBaud) |
|---|---|
| IO-Link revision | 1.1 |
| Profiles | no profile |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time [ms] | 2.5 |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud) |
|---|---|
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 (Draft) |
| Number of ports class A | 1 |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| Shock resistance |
| ||
| Vibration resistance |
| ||
| MTTF [years] | 655.69 |
Mechanical data
| Weight [g] | 116.5 |
|---|---|
| Dimensions [mm] | M12 x 1 |
| Thread designation | M12 x 1 |
| Materials | PA PACM 12 (TROGAMID); PET |
| Sealing material | FKM |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| ||||
|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Moulded body: TPU; Locking: stainless steel (1.4404 / 316L); Sealing: FKM |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30398-00 — 30.10.2013 —
