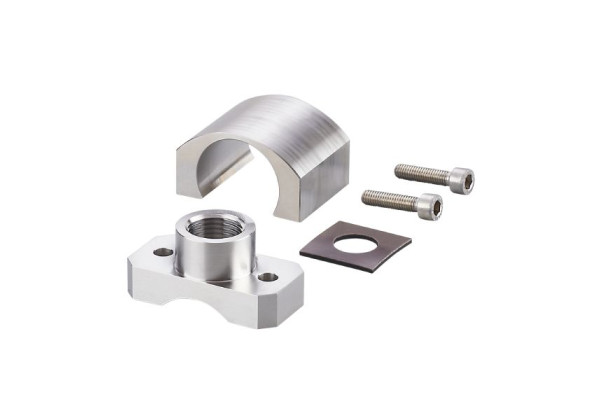

E30424 - efector500-CONDUIT ADAPTER 1/2 NPT
Brand: IFM Electronic
Code: E30424
- Reliable protection of the connector against impact and shock
- For pressure sensors with lateral connector
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | For pressure sensors with lateral connector, for protective tube with coupling, 1/2 - 14 NPT |
|---|
Mechanical data
| Weight [g] | 393.5 |
|---|---|
| Materials | Clamping device: stainless steel (1.4305 / 303); clamp: stainless steel (1.4404 / 316L); Sealing: FKM |
| Tightening torque [Nm] | 5; (see operating instructions) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30424-00 — 19.12.2018 —
