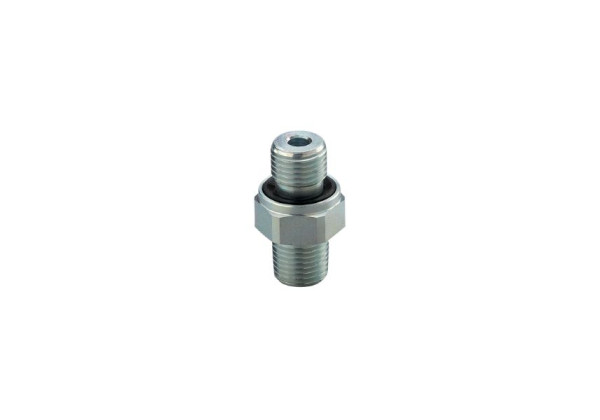

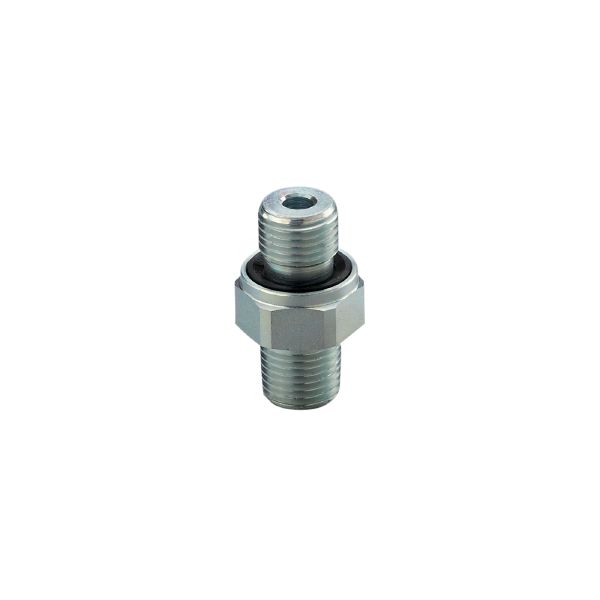

E30427 - efector500-ADAPT G1/4 A - R1/4
Brand: IFM Electronic
Code: E30427
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- High pressure rating
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 43.9 |
|---|---|
| Materials | steel (1.0718 / 12L13); Process connection sealing: FKM (DIN 3869) |
| Sensor connection | G 1/4 |
| Process connection | threaded connection R 1/4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30427-01 — 02.09.2016 —
