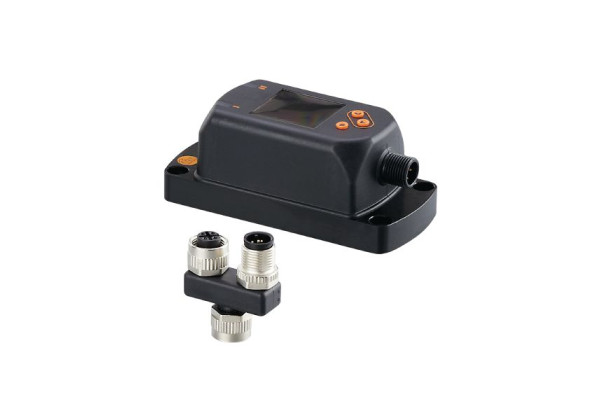

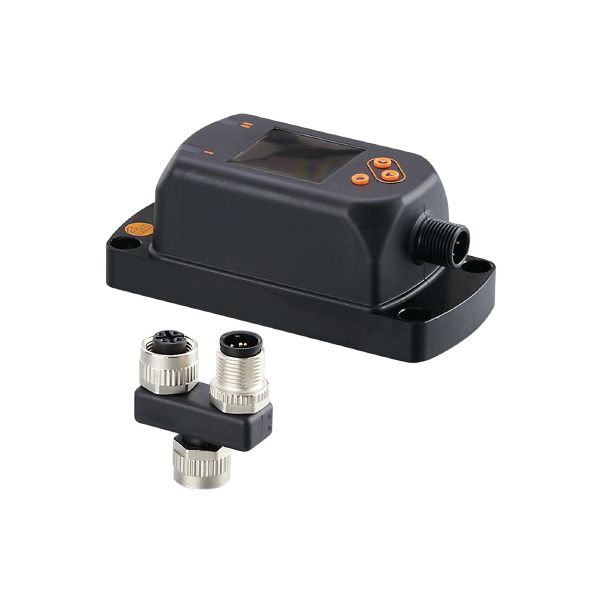

E30430 - IO-LINK INLINE DISPLAY 1,44″

Code: E30430

For displaying the process values of a connected IO-Link sensor
With text displays and dialogue box for free text
Colour change for text and background
Easy integration between sensor and IO-Link master
Supplied with Y-splitter

Application

Special feature	Gold-plated contacts
Application	display of all process values of a connected sensor

Electrical data

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 47
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes

Software / programming

Parameter setting options	display, indication

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis

SIO mode

Required master port type

Min. process cycle time [ms]

11.2

Supported DeviceIDs

Type of operation	DeviceID
Default	694

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...80
Protection	IP 65; IP 67

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-4

Shock resistance

DIN EN 60068-2-27

5 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

5 g (10...50 Hz)

MTTF [years]

397

Mechanical data

Weight [g]	204
Materials	stainless steel (1.4404 / 316L); PC; PBT-GF30; PPS; FKM

Displays / operating elements

Display

	colour display 1,44", 128 x 128 pixels
	2 x LED, yellow

Accessories

Items supplied

Y-splitters:, E12481

Remarks

Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; Contacts: gold-plated
