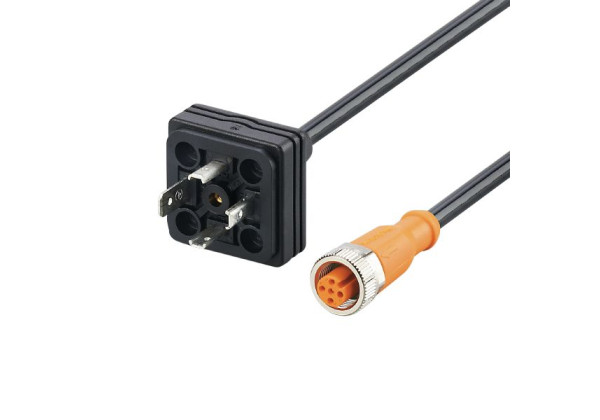

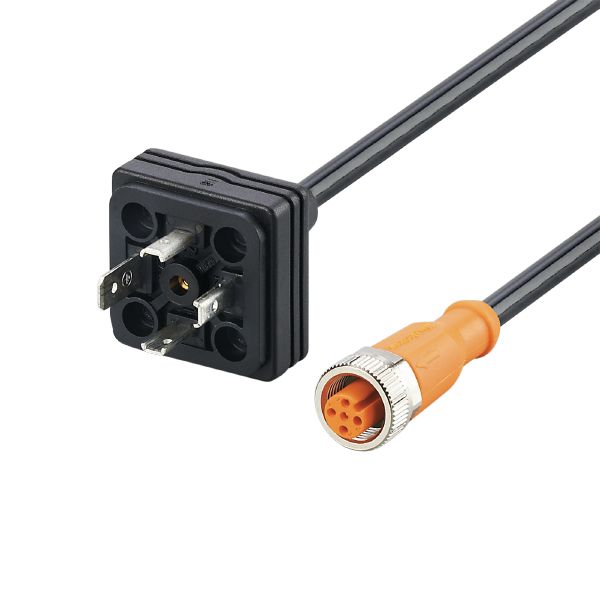

E30436 - PLUG M12 - DIN VALVE FORM A
Brand: IFM Electronic
Code: E30436
- Reliable connection of valves in the field
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Robust rectangular connector
Application
| Special feature | Free from silicone; Halogen-free |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 50 AC / < 60 DC |
|---|---|
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 66.7 |
|---|---|
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Sealing material | FKM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector: 1 x valve type A DIN, straight; Moulded body: TPU, black; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm |
Electrical connection
| Connection | Cable: 0.4 m, PUR, Halogen-free, black, Ø 5.5 mm; 5 x 0.50 mm² |
|---|
Electrical connection - socket
| Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Sealing: FKM; Tightening torque: 0.6...1.5 Nm |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30436-00 — 05.11.2020 —
