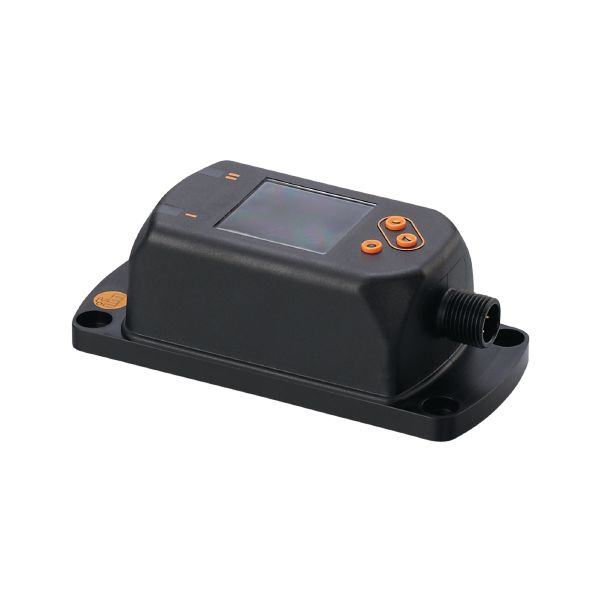

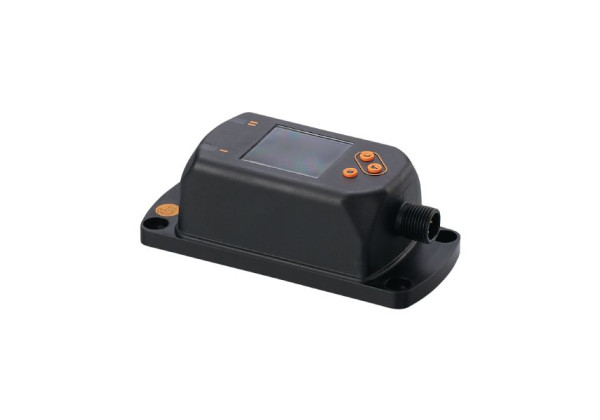

E30443 - IO-LINK MASTER DISPLAY 1,44

Code: E30443

For displaying up to four process values
Flexible adaptation of the display, also during operation
Easy integration into each IO-Link structure
Brightness, orientation and background colour adaptable

Application

Special feature	Gold-plated contacts
Application	display of all process values of the sensors connected to the same master

Electrical data

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 47
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes

Software / programming

Parameter setting options	display, indication

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud); COM3 (230,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis

SIO mode

Required master port type

Min. process cycle time [ms]

11.2

Supported DeviceIDs

Type of operation	DeviceID
Default	824

Operating conditions

Ambient temperature [°C]	0...60
Storage temperature [°C]	-20...80
Protection	IP 65; IP 67

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-4

Shock resistance

DIN EN 60068-2-27

5 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

5 g (10...50 Hz)

MTTF [years]

398

Mechanical data

Weight [g]	171.5
Materials	stainless steel (1.4404 / 316L); PC; PBT-GF30; PPS; FKM;

Displays / operating elements

Display

	colour display 1,44", 128 x 128 pixels
	2 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
