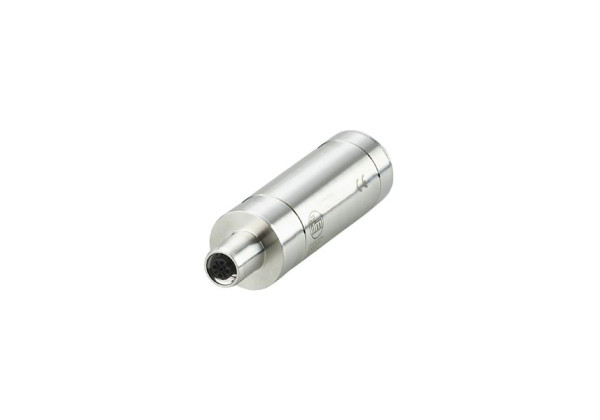

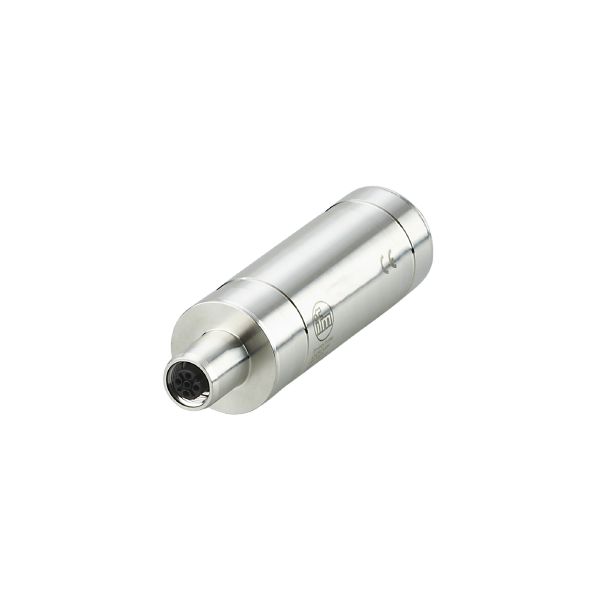

E30444 IO-Link repeater IO-LINK REPEATER

Code: E30444

IO-Link range increased up to 240 m
Series connection of max. 3 repeaters possible
Easy set-up with "plug & play"
Transparent to all certified IO-Link masters
Use in the food and beverage industry

Application

Special feature	Gold-plated contacts

Electrical data

Operating voltage [V]

18...30 DC

Nominal voltage DC [V]

Current consumption [mA]

< 20

Protection class

III

Reverse polarity protection

yes; (on the master side)

Overvoltage protection

yes; (integrated)

Surge protection for voltage

between L-, pin 5 and ground	between L+, signal cables and ground
Umax = 45 V for surge	Umax = 90 V for surge
Umin = 30 V for normal operation	Umin = 60 V for normal operation

Surge protection for current

surge current	leakage current
Imax = 25 A	Imax = 10 µ

Power-on delay time [s]

< 2; (per repeater)

Current rating per port [A]

0.84; (Port Class A; Port Class B: 2)

Delay time acyclic data

up to 2 cycles; (per repeater)

Delay time process data

up to 1 cycle; (per repeater)

Interfaces

Communication interface	IO-Link
Unterstützte IO-Link Revision	1.0; 1.1
Unterstützte Masterportklasse	A / B
Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
SDCI standard	IEC 61131-9
SIO mode	no

Operating conditions

Ambient temperature [°C]	-25...65
Storage temperature [°C]	-40...85
Protection	IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68)

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-4	in plastic or open metal tanks

Shock resistance

DIN EN 60068-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10...2000 Hz)

MTTF [years]

409

UL approval

File number UL

E205959

Mechanical data

Weight [g]	212
Materials	stainless steel (1.4404 / 316L); PEI; PA reinforced fibre; FKM; Grounding clamp: stainless steel (1.4301 / 304)

Displays / operating elements

Display

	1 x LED
operation	green
IO-Link	green
fault	red

Remarks

For information on the maximum cable length please refer to the operating instructions.

functional grounding via premounted grounding clamp

for further information please see the operating instructions

Pack quantity

1 pcs.
