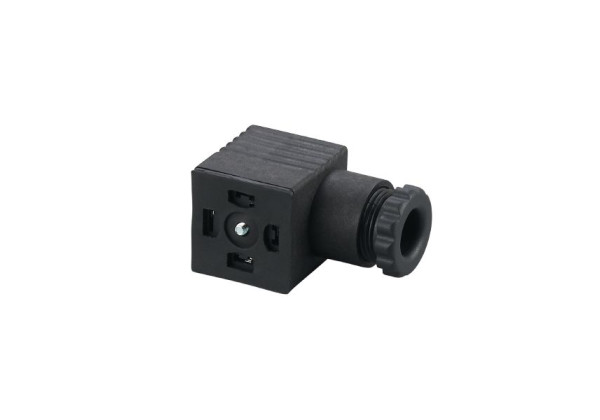

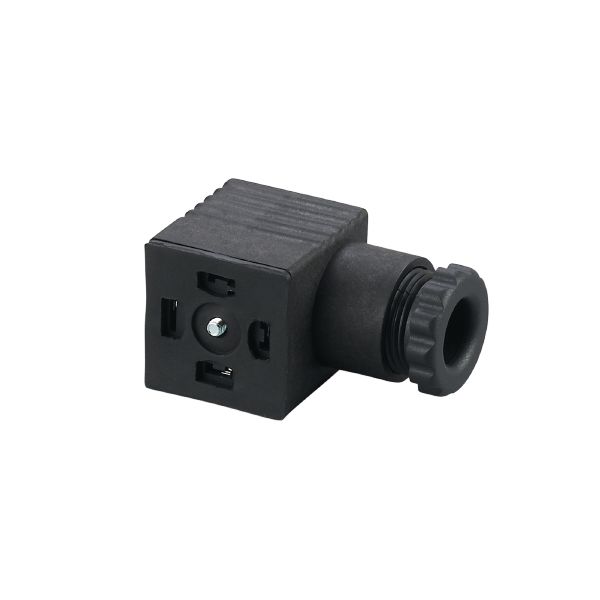

E30447 Wirable valve connector VALVE PLUG TYPE A
Brand: IFM Electronic
Code: E30447
- Angled type for use where space is restricted
- Wide operating temperature range
- High protection rating
Application
| Special feature | Free from silicone |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage [V] | < 45 AC / < 70 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 10 |
Operating conditions
| Ambient temperature [°C] | -40...125 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 32.3 |
|---|---|
| Dimensions [mm] | 41 x 27 x 30 |
| Materials | PA; FKM |
| Moulded-body material | PA |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | terminals:...1.5 mm²; Cable sheath: Ø 6...8 mm |
|---|
Electrical connection - socket
| Connector: 1 x valve plug type A DIN, angled; Moulded body: PA |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30447-00 — 17.12.2018 —
