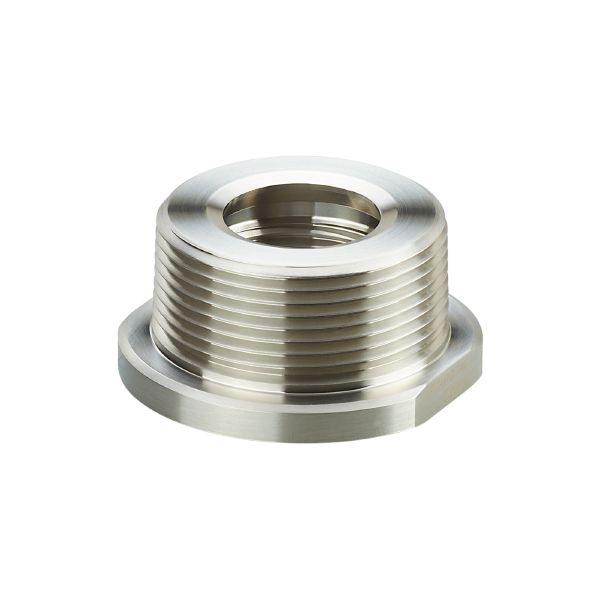

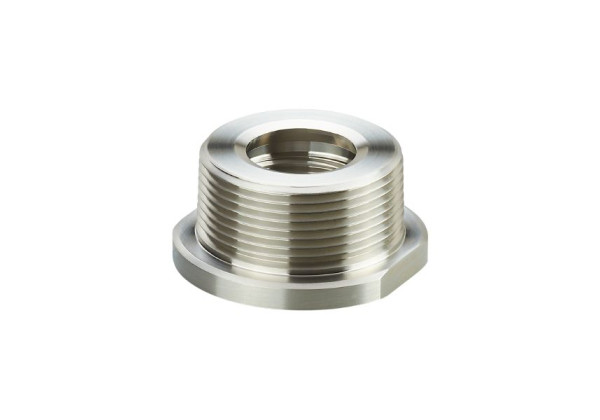

E33627 Screw-in adapter for process sensors ADAPT G1 - 1 1/2 NPT
Brand: IFM Electronic
Code: E33627
- For the installation of pressure sensors in containers and pipes
- Easy, quick and secure mounting
- Use in industrial and hygienic applications
- High pressure rating
- Stable fixing by screwing in
Application
| Pressure rating [bar] | 50 | |
|---|---|---|
| Note on pressure rating |
|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 299.6 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1 sealing cone |
| Process connection | threaded connection 1 1/2" NPT |
| Surface characteristics Ra/Rz of the wetted parts | 0.4 / 4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E33627-00 — 18.12.2019 —
