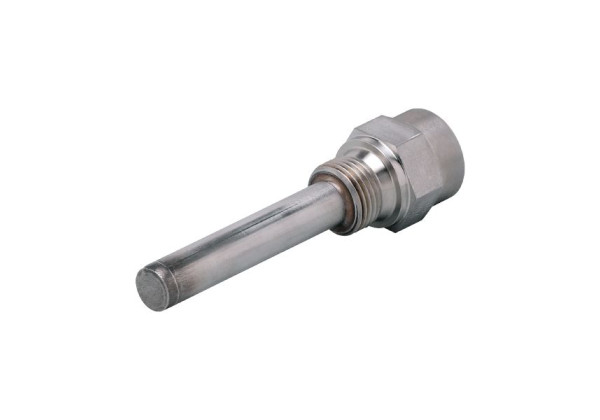

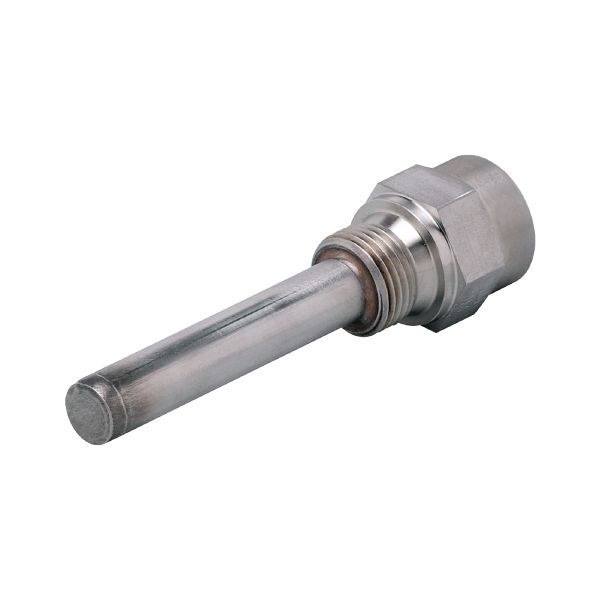

E35030 - efector600-THERMOWELL D10/G1/2/L=300
Brand: IFM Electronic
Code: E35030
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- High pressure rating
- Simple process connection via adapter
- Robust stainless steel housing for the requirements of harsh industrial environments
Application
| Design | for temperature sensors EL = 300 mm |
|---|---|
| Pressure rating [bar] | 16 |
Measuring/setting range
| Probe length L [mm] | 282 |
|---|
Mechanical data
| Weight [g] | 199.25 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1/2 Ø 10 mm |
| Process connection | G 1/2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E35030-00 — 06.03.2003 —
