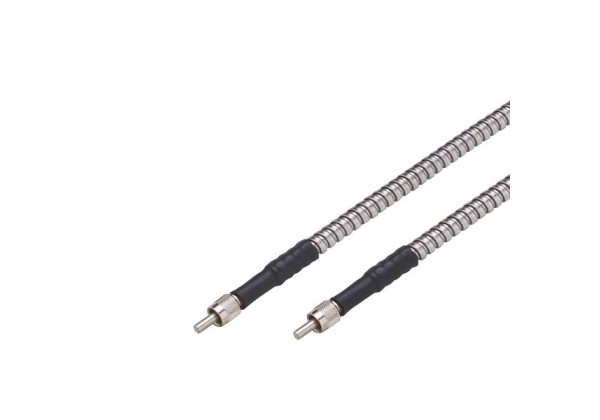

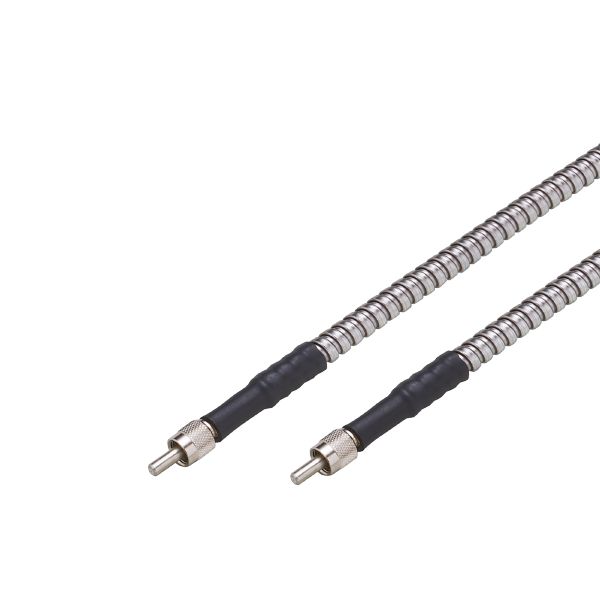

E35062 - efector600-FIBRE OPTIC 5M
Brand: IFM Electronic
Code: E35062
- For operation with infrared temperature sensors
- For applications in high-temperature areas
- Stainless steel sheathing for use up to 250 °C
- Resistant to various aggressive chemicals
- Small bending radius
Application
| Design | connection to infrared temperature sensors TWxx11 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...250 |
|---|
Mechanical data
| Weight [g] | 365 |
|---|---|
| Fibre optic connection | ¼"-36UNS-2A |
| Version of sensing head | straight |
| Total length [mm] | 5000 |
| Min. bending radius [mm] | 120 |
| Fibre arrangement | |
| Fibre material | quartz / quartz |
| Fibre head material | CuNiZn |
| Fibre sheath material | stainless steel |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E35062-00 — 07.11.2012 —
