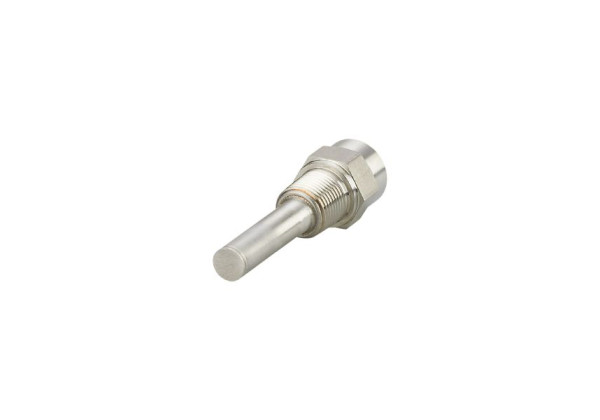

E35110 - efector600-THERMOWELL D10/NPT1/2/L=100
Brand: IFM Electronic
Code: E35110
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- High pressure rating
- Simple process connection via adapter
- Robust stainless steel housing for the requirements of harsh industrial environments
Application
| Design | for temperature sensors EL = 100 mm |
|---|---|
| Pressure rating [bar] | 16 |
Measuring/setting range
| Probe length L [mm] | 72 |
|---|
Mechanical data
| Weight [g] | 120 |
|---|---|
| Materials | stainless steel (1.4571/316Ti ) |
| Sensor connection | 1/2" NPT Ø 10 mm |
| Process connection | 1/2" NPT |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E35110-00 — 16.08.2006 —
